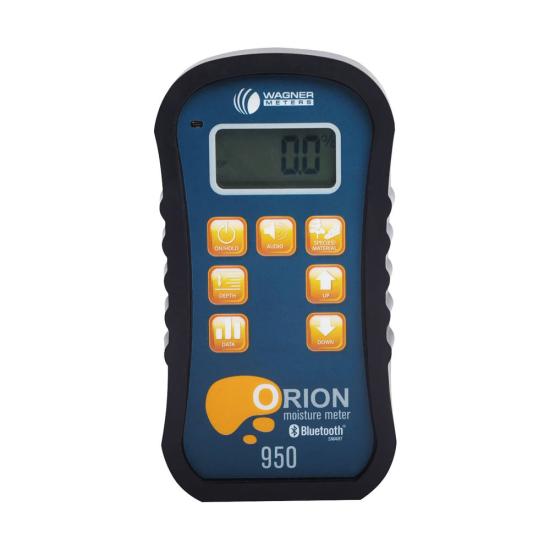

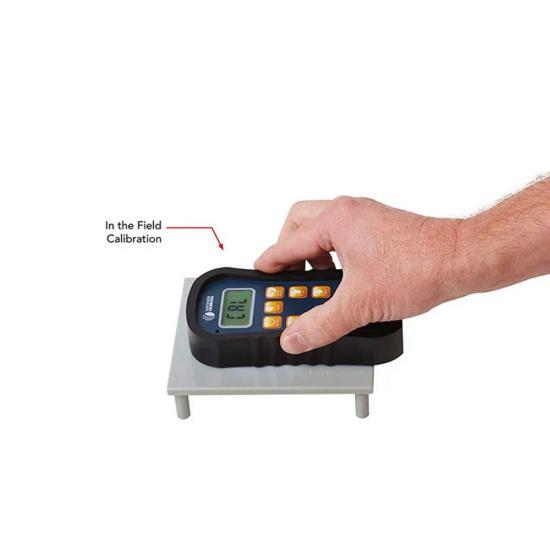

Wagner Meters Orion® 950 Smart Pinless Wood Moisture Meter Kit with On-Demand Calibrator

Now: $645.00 USD

Zoom

Estimated
$0.00 CAD

Clear All

890-00950-001	$645.00 USD
890-00950-0015 Available$645.00 USD/ea

No Matching SKUs.

Details

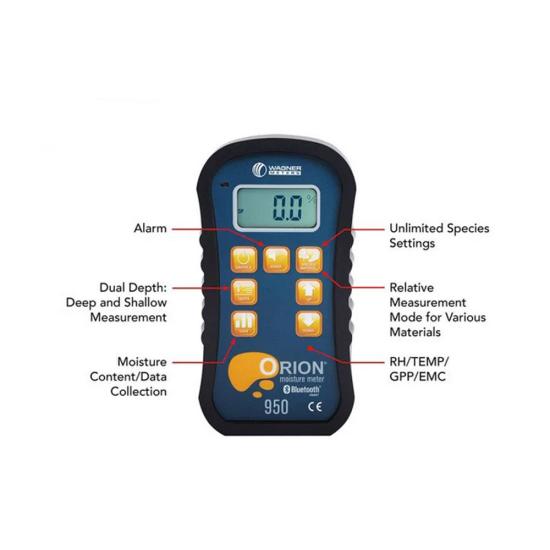

The award-winning Orion 950 Pinless Wood Moisture Meter is designed to
streamline your workflow and provide unparalleled accuracy for all your
woodworking needs. Packed with advanced features, it safeguards your
projects from costly wood moisture failures, ensuring long-lasting
quality.

Technical Specifications

Dimensions with Boot

Length: 5.75 inches (146mm)
Width: 3.0 inches (76mm)
Thickness: 1.0 inches (25mm)

Weight with Boot

7.2 oz. (204g)

Scanning Area

2.0 inches (50mm) x 2.5 inches (63mm)

Power

9-volt battery (Wagner recommends using non-rechargeable Alkaline or Lithium or rechargeable NiMH batteries)

Auto Power Shut-Down

60 seconds

Backlight

Includes adjustable backlit display

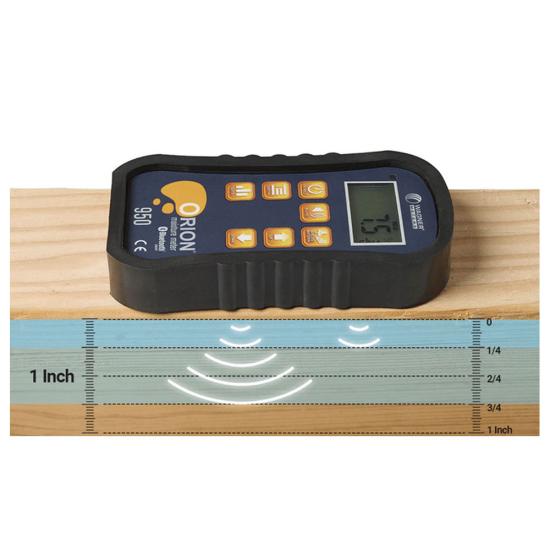

Dual Depth Measurement

Appropriate for reading into the wood to .25” (6.4mm) in depth in the shallow scan mode
Appropriate for reading into the wood to .75” (19mm) in the deep scan mode

Internal Data Storage Capacity

100 saved readings

Measurement Ranges

MC for wood: 4.0% to 32.0% (range will vary slightly depending on species setting)
Relative Measurement Scale: 0-100
Ambient Temperature: 32˚F to +110˚F (0˚C to +43˚C)
Ambient Relative Humidity: 0% to 100%
Equilibrium Moisture Content Measurement Range: 0-40.7%
Dew Point: -85˚F to +110˚F (-65˚C to +43˚C)
Absolute Humidity: 0 to 431.1 lb/ft (0 to 61.6 kg/m)

Specific Gravity Range for Wood Species

0.20-1.0 SG

Storage Temperature and Humidity

+50˚F to +90˚F (+10˚C to +32˚C), Maximum relative humidity of 95%, Non-condensing

Operating Temperature Range

+32˚F to +110˚F (+0˚C to +43˚C)

Downloads

Orion 950 Manual

Species Selection Booklet

Species Settings for Common Flooring Products

Connecting Orion 950 to Mobile Apps
