EZ Sharp Drill Press Sharpener Jig Solid Hardwood

Taytools EZ Sharp Drill Press Sharpener Jig Solid Hardwood

SKU of product changed to in carousel content
 $23.99 USD $24.99 USD
$23.99 USD$24.99 USD
 Logo
This EZ Sharp Drill Press Sharpening System is the most cost-effective and efficient sharpening approach available. It can re-sharpen a dulled chisel in less than 20 seconds and can restore a razor-s...More Details
Zoom
Flag Icon
Estimated
$0.00 CAD
Question Mark Icon

SIZE

Size of product changed to NEWSALE in carousel content

SIZE

Flag Icon
Estimated Total
Includes Duties
Help

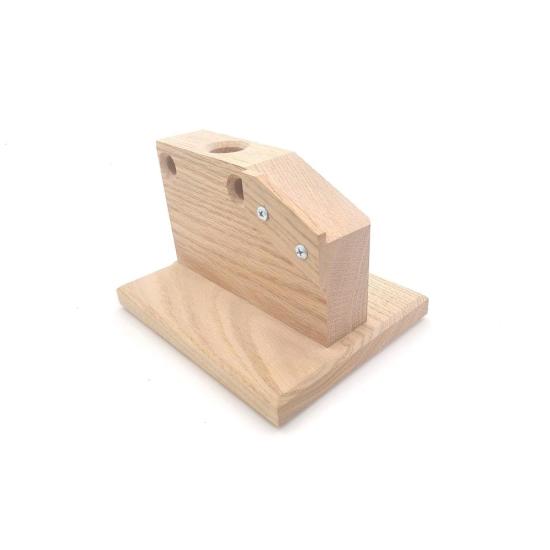

This EZ Sharp Drill Press Sharpening System is the most cost-effective and efficient sharpening approach available. It can re-sharpen a dulled chisel in less than 20 seconds and can restore a razor-sharp edge on very abused chisels in less than 60 seconds. It eliminates the need for much more expensive bench grinders, belt sanders, honing guides, strops, and/or sharpening stones.

The Sharpening System comprises abrasive discs that mount in a drill press and a Chisel Sharpening Jig used to hold edge tools at the correct bevel angle and at a 90-degree angle to the edge of the tool. We offer plans to allow the end-user to fabricate their own jig, but we are now selling the jig separately.

They come in 2 sizes to accommodate different chisel blade lengths:

3" Ramp

- Base: 6" x 7-1/2" x 3/4" thick
- Body: 4" x 7" x 1-3/4"
- Ramp: cut at 25 degrees and is 3" long with a fence on the left side
- Body: contains holes to accept 2 disc mandrels and the honing compound
- Entire jig made from Red Oak
- The base, body, and ramp come fully assembled and ready for use.

2-1/2" Ramp

- Base: 5-1/2" x 7-1/2" x 3/4" thick
- Body: 3" x 5-3/4 x 1-3/4"
- Ramp: cut at 25 degrees and is 2-1/4" long with a fence on the left side
- Body: contains one hole for the honing compound
- Entire jig made from Red Oak
- The base, body, and ramp come fully assembled and ready for use.

Note: It is important that the jig is calibrated to your drill press so it can grind/sharpen edge tools to a perfect 90-degree angle. Do this by sharpening your widest chisel and checking for square. Shim up one side or another of the underside of the base with blue tape until the edge is perfectly 90 degrees.
    ⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    Reviews

    4.8 out of 5.0 4.8 stars(4)
    From:
    5/5
    Sharpening
    Haven't used it yet. It is well built.
    From:
    5/5
    Drill press sharpening guide
    Now I need one for my plane blades. Great product for chisels.?üëç
    From:
    5/5
    Very well made
    I couldn't have done better myself. Between the 1st rate material and detail put into this jig, it was well worth the money. My only wish is that it had come pre-drilled for the MagJigs.
    From:
    4/5
    Sharpening kit
    I received the complete chisel sharpening kit from Taytools and I will say that I am impressed with the quality of construction of it. The only drawback that I have when sharpening one of my chisels, the ramp is too long. The shank on my chisel is about 1/2 inch shorter than the ramp. So, I will have to modify it for this tool.
