Taytools Adjustable Workbench Bench Dog Screw Clamp, Fits 3/4“ Dog Holes, Full 5-1/2” Travel

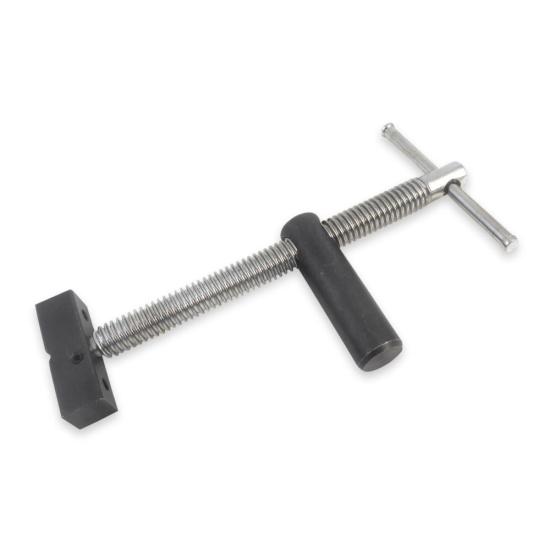

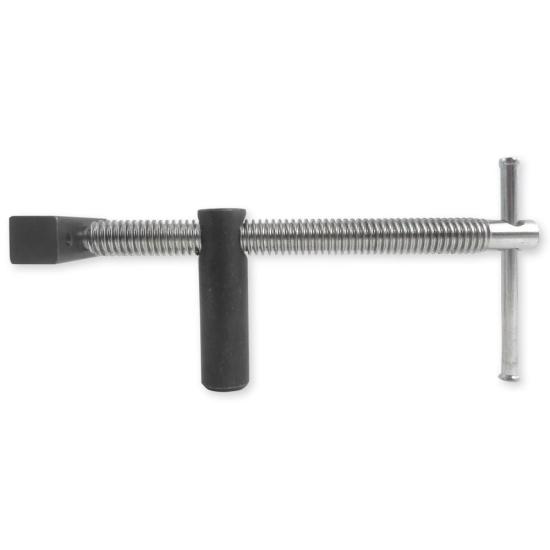

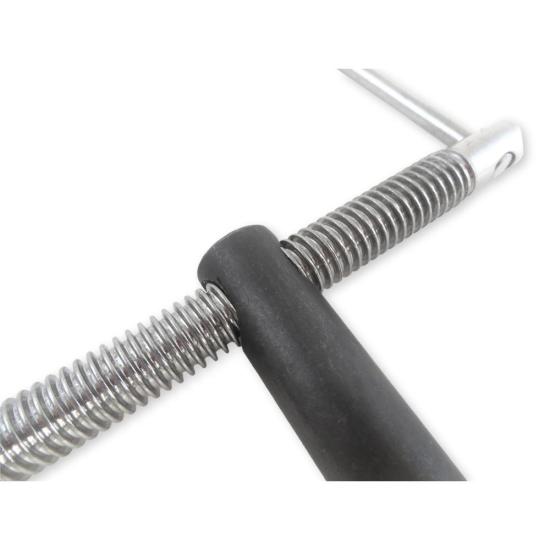

This adjustable in-line bench dog clamp allows you to secure work flat to your workbench anywhere there are 3/4” dog holes. The post is just shy of 3/4”, so will slip in and out of any 3/4” dog hole.Used in conjunction with a plane stop or bench dogs, you can secure virtually any size or shape workpiece anywhere on your bench as you dog holes are spaced 6" apart on center or less. You can clamp parts equally well on the top or edge of a workbench. The low-profile design sits just 11/16” above the surface of your bench, so will not interfere when planning or sanding 3/4” thick material. The post is 2-5/8” long overall and can extend a full 2” into a benchtop.

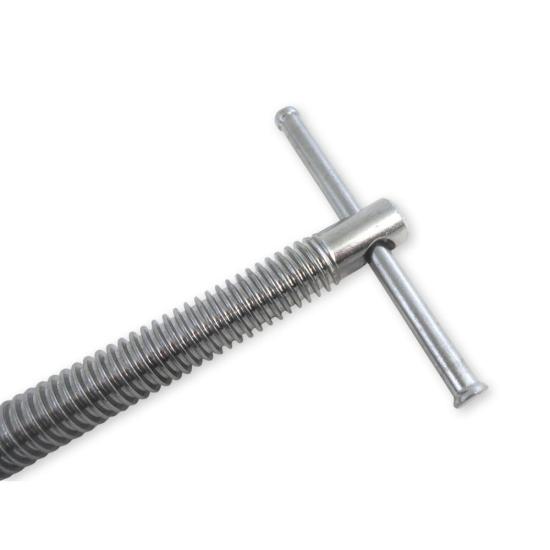

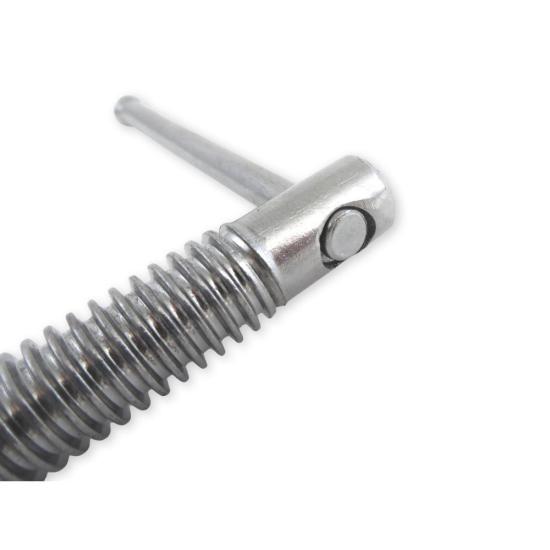

The moveable head travels on smooth-turning 10 TPI carbon steel threads that produce high horizontal clamping pressure with the least effort. The clamp head has has a full 6" reach and 5-1/2" of travel. The handle is a low-profile sliding pin bar design. Threads and handle are zinc plated for smooth motion and corrosion resistance.

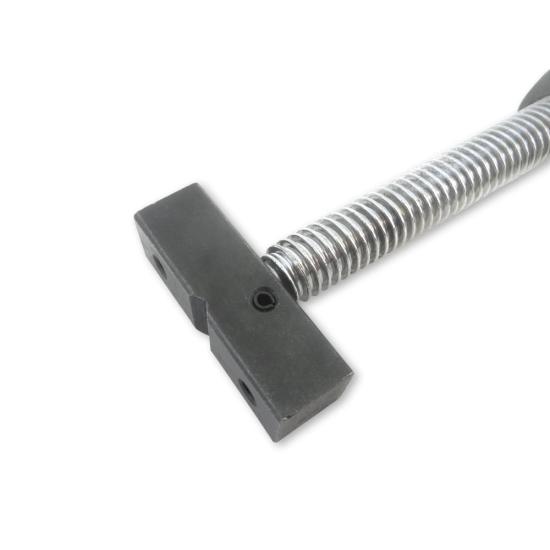

The 2” long x 5/8” square moveable head has a V-groove in the center and pivots 2 degrees to accommodate irregular shaped parts. The head has 2 mounting holes to allow attachment of custom clamp pads. Both the head and post are black coated to resist corrosion.

This will be an often used and excellent addition to any workbench.
