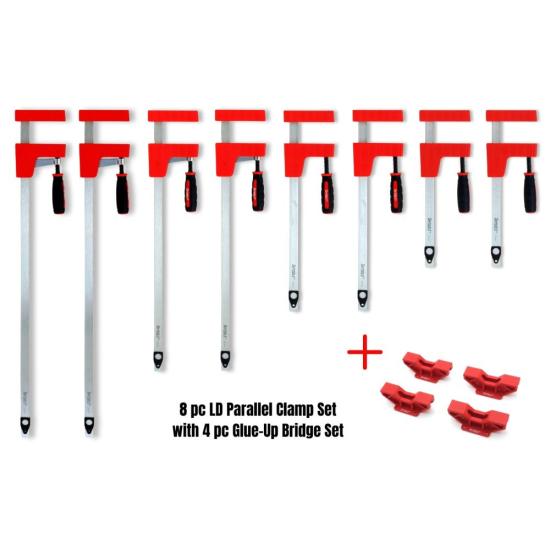

This ultimate 12-piece LD parallel clamp set contains the following:
- 2 each 6" LD parallel clamps
- 2 each 12" LD parallel clamps
- 2 each 18" LD parallel clamps
- 2 each 24" LD parallel clamps
- 4 piece Glue-Up Joint Bridges

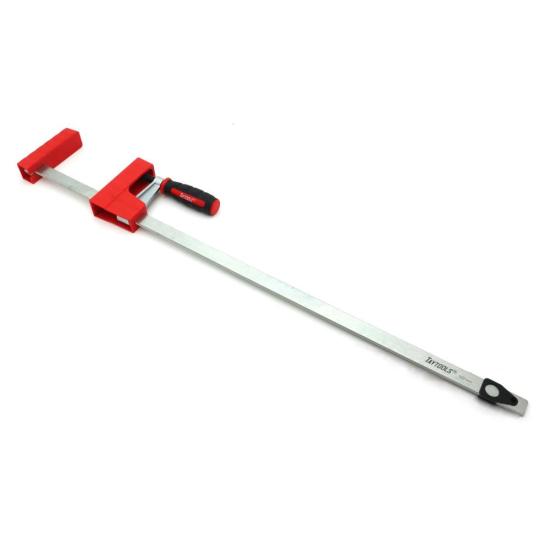

These 90-degree parallel clamps offer the perfect clamping solution for smaller panels and casework. They are particularly well-suited for any project requiring perpendicular 90-degree clamping pressure to the rail. These clamps ensure square glue-ups every time. They can also be used with your work parallel to the flat bar rail when clamping longer, flat pieces.

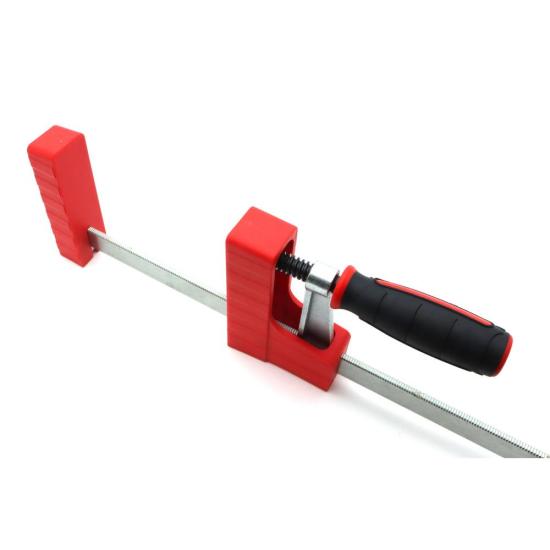

Featuring steel-reinforced nylon jaws, they provide powerful and rigid clamping pressure. The jaws, measuring 4-3/8" x 1-1/4", distribute clamping forces evenly, with a generous usable jaw depth of 3-1/8". The wider jaws allow you to use fewer clamps and prevent crushing of your workpieces.
The jaws of these clamps will not free-fall and strike your workpiece (or your hand) when used or stored vertically. The moveable jaws disengage and slide along the rail effortlessly when pressure is released and the handle is lifted. To lock the clamping head securely, simply lower the handle, slide it to the desired position, and apply pressure. These clamps generate up to 331 lbs. of clamping pressure.
Each clamp comes with a removable stop at the end of the rail to prevent the clamp head from sliding off and to keep the clamps level during narrow glue-ups. Remove the stops, reverse the head, and the clamps can also be used as spreaders.

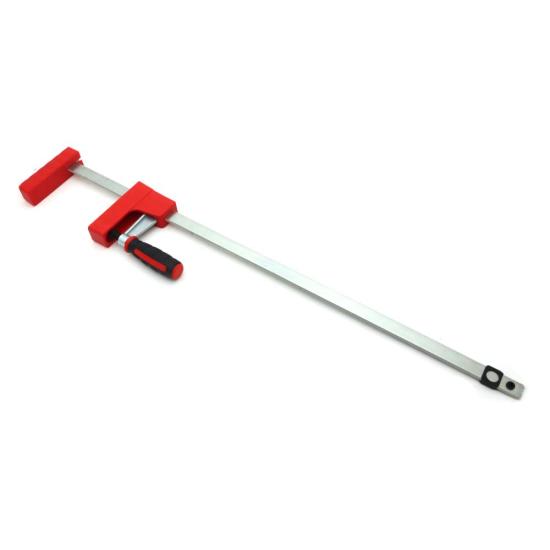

Featuring a 3/4" x .200" C45 carbon steel rail, these clamps resist flexing and torsional forces. The steel rail is nickel-plated, while the screw is blackened to prevent corrosion.

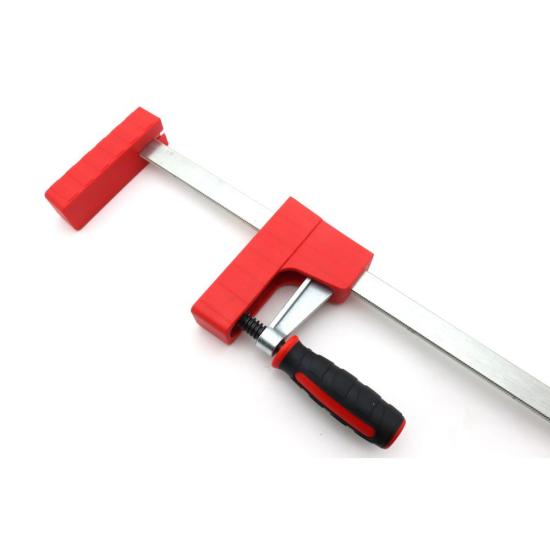

The moveable jaw boasts a smooth-turning carbon steel Acme screw, delivering maximal clamping pressure with minimal effort. Jaw screw travel is a full 1-1/2".
The ergonomic soft-grip two-part Plastic/TPR handle optimizes torque and reduces hand fatigue.
Weight:
- 8": 1.42lbs
- 12": 1.59lbs
- 18": 1.81lbs
- 24": 2.1lbs

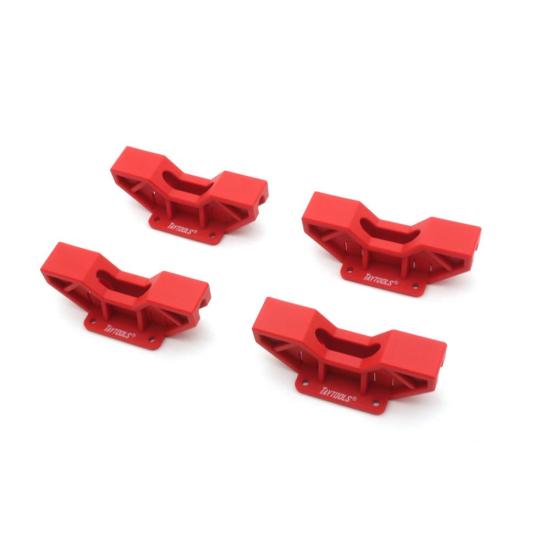

Glue-Up Joint Bridges - Pack of 4
Glue-Up Joint Bridges help eliminate the stress with panel glueups and bring twisted, bowed, or cupped boards level with each other during complicated glue-ups. Simply clamp a Glue-Up Joint Bridge above and below a joint with the arch centered over the joint, apply a clamp, and the joint will come into alignment. Made from nearly indestructible nylon-reinforced polycarbonate, they will not break or crack under extreme pressure. These bridges won't mar your work, and dried glue can be easily knocked off. They feature a 5/16” wide by 1-3/8” deep groove down the middle to straddle clamp bars. Each bridge measures 4-1/4” long by 1-13/16” wide by 1-9/16” high. Sold in sets of four.
