Taytools 12-Piece HD Parallel Clamp Set with 4 Clamps (2 each 24" & 2 each 39"), Corner Blocks Set & Glue-Up Joint Bridge Set
SKU of product changed to in carousel content
$169.99 USD
Now: $169.99 USD
Zoom
Estimated
$0.00 CAD
$0.00 CAD
- --- SELECT ONE ---
- 4157110290 Handle Length:4-3/4 Handle Diameter:1-1/4 Jaw Length:5-7/8 Jaw Width:2 Jaw Depth:3-7/8 Maximum Clamping Force:1322 I-Beam Bar Width:1-1/8 I-Beam Bar Thickness:3/8NewOn SaleRegular
| xHandle Length:xHandle Diameter:xJaw Length:xJaw Width:xJaw Depth:xMaximum Clamping Force:xI-Beam Bar Width:xI-Beam Bar Thickness:Clear All | |||||||||
| SKU | Handle Length | Handle Diameter | Jaw Length | Jaw Width | Jaw Depth | Maximum Clamping Force | I-Beam Bar Width | I-Beam Bar Thickness | Price |
|---|---|---|---|---|---|---|---|---|---|
| 12pcHDClampSet_1 | 4-3/4 | 1-1/4 | 5-7/8 | 2 | 3-7/8 | 1322 | 1-1/8 | 3/8 | $169.99 USD |
| 12pcHDClampSet_1Out of Stock$169.99 USD/ea $199.99 USD | |||||||||
| No Matching SKUs. | |||||||||
Details

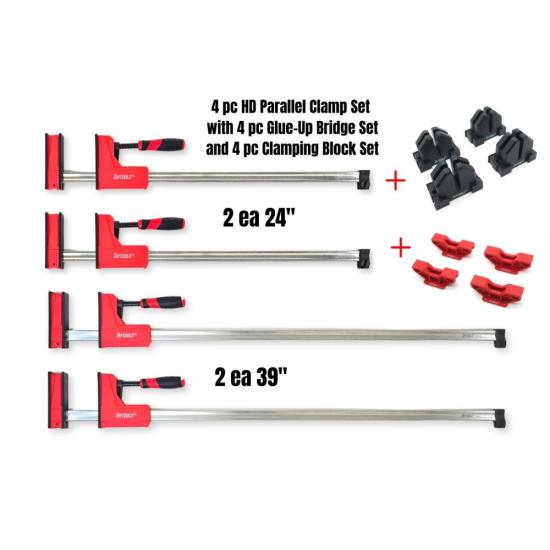

This 12 pc HD parallel clamp set contains the following:

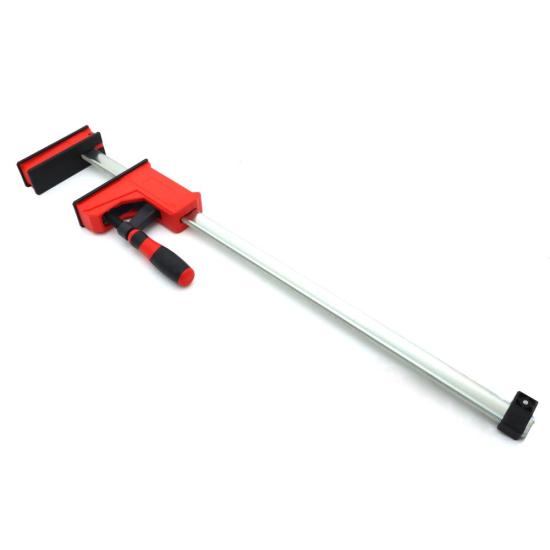

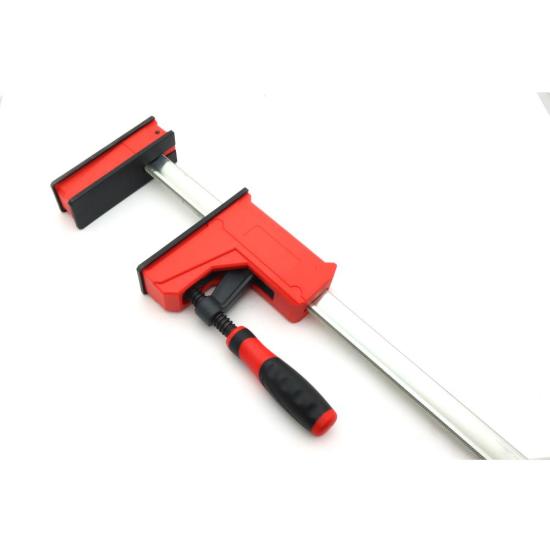

These heavy-duty 90-degree parallel clamps offer the perfect clamping solution for professionals, serious hobbyists, or DIY enthusiasts. They are particularly well-suited for gluing panels, casework, boxes, frame and panel doors, or any project requiring perpendicular 90-degree clamping pressure to the rail. These clamps ensure square glue-ups and prevent parts from bowing. They can also be used with your work parallel to the flat bar rail when clamping longer, flat pieces.
Featuring large steel-reinforced nylon jaws, they provide powerful and rigid clamping pressure. The jaws, measuring 5-3/4” tall by 2" wide, distribute clamping forces evenly, with a generous usable jaw depth of 3-7/8". Both jaws come equipped with anti-marring, glue-resistant, removable clamping pads. These clamps generate up to 1322 lbs. of clamping pressure. The extra wide 2" jaws allow you to use fewer clamps and the jaw pads prevent crushing of your workpieces.
The jaws of these clamps will not free-fall and strike your workpiece (or your hand) when used or stored vertically. The moveable jaws disengage and slide along the rail effortlessly when pressure is released and the handle is lifted. To lock the clamping head securely, simply lower the handle, slide it to the desired position, and apply pressure. The moveable jaw locks onto the serrated steel I-beam via several hardened clutch plates.
Each clamp comes with a removable stop at the end of the rail to prevent the clamp head from sliding off and to keep the clamps level during narrow glue-ups. Remove the stops, reverse the head, and the clamps can also be used as spreaders.
Featuring a 1-1/8" x 3/8" C45 carbon steel I-beam rail, these clamps resist flexing and torsional forces. The steel rail is nickel-plated, while the screw is blackened to prevent corrosion.

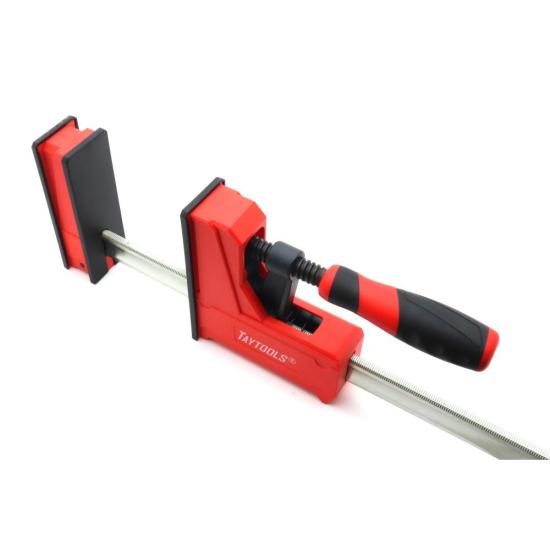

The moveable jaw has a smooth-turning carbon steel Acme screw, delivering maximal clamping pressure with minimal effort. Jaw screw travel is a full 1-3/4"
The oversized ergonomic soft-grip two-part Plastic/TPR handle optimizes torque and reduces hand fatigue.
The moveable clamp stand on the rail enables clamps to stand upright for one-handed operation and facilitates effortless clamp adjustment.
For added flexibility, additional accessories such as four-corner clamping blocks can ensure the workpiece is perfectly square.
4 pc Corner Block Set:

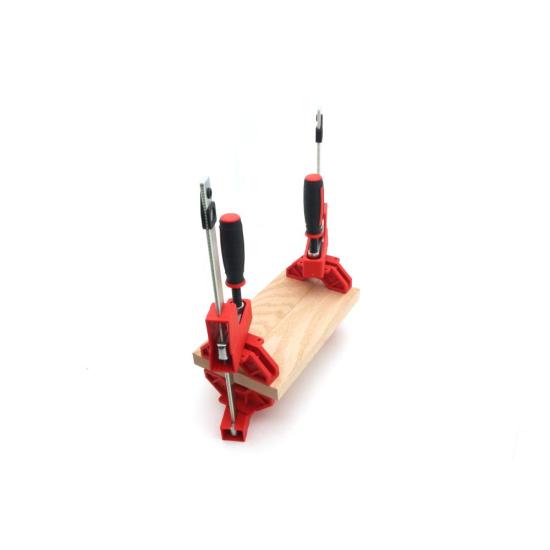

Designed to fit most standard parallel clamps with rails up to 1-1/4” wide and 0..4375” thick, these clamp blocks simplify complex four-corner clamping projects, making glue-ups easier, less stressful, and more precise. Featuring two perpendicular channels, they hold bar clamps at 90-degree angles, ensuring alignment throughout the clamping process
Constructed from heavy-duty, fiberglass-reinforced plastic, each block includes two countersunk screw holes, allowing you to mount them to a workbench or wall for convenient and organized storage. Size of each block is 4-1/2” long x 2-3/8” wide and 3-1/2” tall.
This 4-piece set holds up to four parallel clamps at once, making it perfect for assembling frames, boxes, doors, drawers, and more. For larger projects requiring longer clamps, the dovetail channels at the block ends allow multiple blocks to connect, providing added stability and preventing clamps from tipping during use.
Whether you're working solo or with a team, these clamp blocks keep all parts and clamps securely in place during stressful four-corner glue-ups, freeing up your hands and ensuring a smoother, more efficient, and more accurate process.
4 pc Glue-Up Joint Bridges:
- 2 ea 24" HD Parallel Clamps
- 2 ea 39" HD Parallel Clamps
- 4 pc Corner Block Set
- 4 pc Glue-Up Joint Bridges
These heavy-duty 90-degree parallel clamps offer the perfect clamping solution for professionals, serious hobbyists, or DIY enthusiasts. They are particularly well-suited for gluing panels, casework, boxes, frame and panel doors, or any project requiring perpendicular 90-degree clamping pressure to the rail. These clamps ensure square glue-ups and prevent parts from bowing. They can also be used with your work parallel to the flat bar rail when clamping longer, flat pieces.
Featuring large steel-reinforced nylon jaws, they provide powerful and rigid clamping pressure. The jaws, measuring 5-3/4” tall by 2" wide, distribute clamping forces evenly, with a generous usable jaw depth of 3-7/8". Both jaws come equipped with anti-marring, glue-resistant, removable clamping pads. These clamps generate up to 1322 lbs. of clamping pressure. The extra wide 2" jaws allow you to use fewer clamps and the jaw pads prevent crushing of your workpieces.
The jaws of these clamps will not free-fall and strike your workpiece (or your hand) when used or stored vertically. The moveable jaws disengage and slide along the rail effortlessly when pressure is released and the handle is lifted. To lock the clamping head securely, simply lower the handle, slide it to the desired position, and apply pressure. The moveable jaw locks onto the serrated steel I-beam via several hardened clutch plates.
Each clamp comes with a removable stop at the end of the rail to prevent the clamp head from sliding off and to keep the clamps level during narrow glue-ups. Remove the stops, reverse the head, and the clamps can also be used as spreaders.
Featuring a 1-1/8" x 3/8" C45 carbon steel I-beam rail, these clamps resist flexing and torsional forces. The steel rail is nickel-plated, while the screw is blackened to prevent corrosion.
The moveable jaw has a smooth-turning carbon steel Acme screw, delivering maximal clamping pressure with minimal effort. Jaw screw travel is a full 1-3/4"
The oversized ergonomic soft-grip two-part Plastic/TPR handle optimizes torque and reduces hand fatigue.
The moveable clamp stand on the rail enables clamps to stand upright for one-handed operation and facilitates effortless clamp adjustment.
For added flexibility, additional accessories such as four-corner clamping blocks can ensure the workpiece is perfectly square.
4 pc Corner Block Set:
Designed to fit most standard parallel clamps with rails up to 1-1/4” wide and 0..4375” thick, these clamp blocks simplify complex four-corner clamping projects, making glue-ups easier, less stressful, and more precise. Featuring two perpendicular channels, they hold bar clamps at 90-degree angles, ensuring alignment throughout the clamping process
Constructed from heavy-duty, fiberglass-reinforced plastic, each block includes two countersunk screw holes, allowing you to mount them to a workbench or wall for convenient and organized storage. Size of each block is 4-1/2” long x 2-3/8” wide and 3-1/2” tall.
This 4-piece set holds up to four parallel clamps at once, making it perfect for assembling frames, boxes, doors, drawers, and more. For larger projects requiring longer clamps, the dovetail channels at the block ends allow multiple blocks to connect, providing added stability and preventing clamps from tipping during use.
Whether you're working solo or with a team, these clamp blocks keep all parts and clamps securely in place during stressful four-corner glue-ups, freeing up your hands and ensuring a smoother, more efficient, and more accurate process.
4 pc Glue-Up Joint Bridges:
Glue-Up Joint Bridges help eliminate the stress with panel glueups and bring twisted, bowed, or cupped boards level with each other during complicated glue-ups. Simply clamp a Glue-Up Joint Bridge above and below a joint with the arch centered over the joint, apply a clamp, and the joint will come into alignment.
Made from nearly indestructible nylon-reinforced polycarbonate, they will not break or crack under extreme pressure. These bridges won't mar your work, and dried glue can be easily knocked off.
They feature a 5/16” wide by 1-3/8” deep groove down the middle to straddle clamp bars. Each bridge measures 4-1/4” long by 1-13/16” wide by 1-9/16” high.
