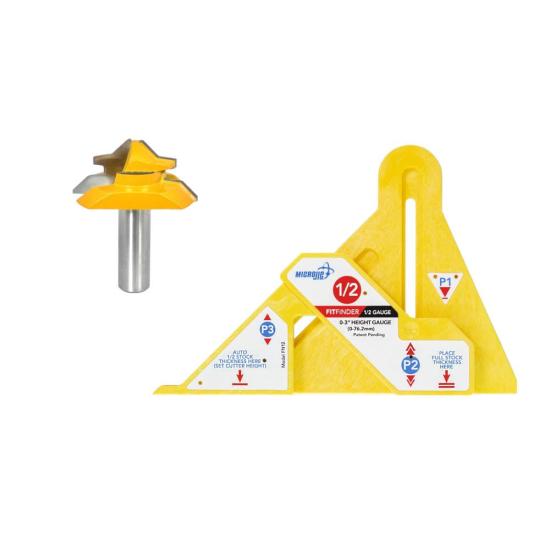

Microjig FITFINDER 1/2" Gauge Center Finder and Microjig FitFinder Lock Miter Router Bit

Bundle includes the FN12 FITFINDER and the MB-050-0750LM FITFINDER Lock Miter Router Bit (1/2" Shank)

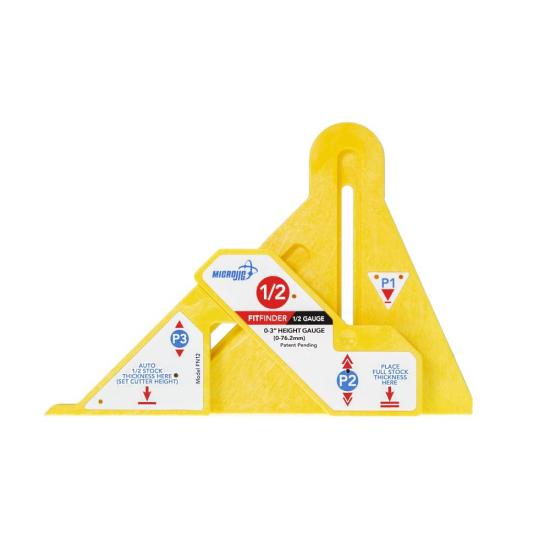

FN12 FITFINDER:

Find 1/2 thickness of material in seconds.

The FITFINDER 1/2 Gauge allows you to find the 1/2 thickness of any material up to 3" thick. Create perfectly fitting joints with zero guesswork, set fences and transfer cutting depths instantly--all with no math or measuring.

No math or measuring required.

The FITFINDER 1/2 Gauge automatically finds the center of your workpiece using simple geometry. Lock the measurement in place and set the cutting depth of your saw blade/router bit, or set fences.

1.  Match the material's thickness - Place material under P2, then lower P2 so that it rests on top of the material.
2. Find the 1/2 point - the bottom of P3 automatically adjusts to exactly 1/2 the thickness of the material.
3. Transfer measurement - Lock in the measurement and use the FITFINDER to set cutting depths and fences.

Set fences for resawing. Set fence positions and resaw material on the bandsaw with zero guesswork.

Center stock on the lathe. Find the center of stock and mount material on the lathe for safer spindle turning.

Set precise cutting depths. Lock in the measurement and transfer to the router or table saw to set cutting depth for flawless lap joints.

Center router bits. Quickly and accurately find the halfway point of material.

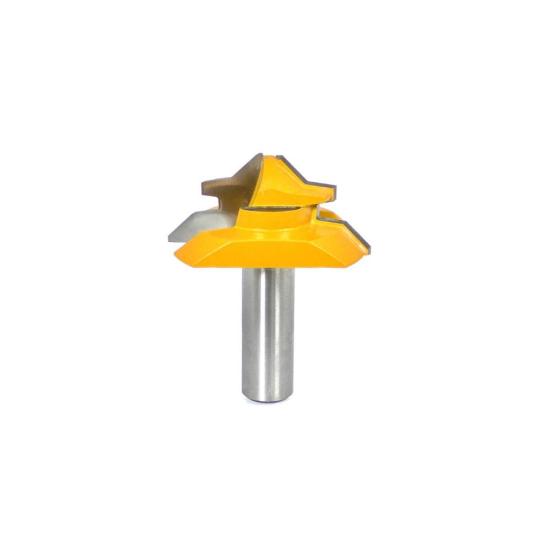

MB-050-0750LM FITFINDER Lock Miter Router Bit (1/2" Shank):

The lock miter joint can’t be beat for making columns, newels, posts and cabinet scribes, but the bit and stock have to be exactly centered together. Only Microjig’s Lock Miter Bit features the Center Finding Platform milled into the bit body at the precise center of the cutting profile. A solid measuring point to set the correct bit height the first time.

• Patent pending Center Finding Platform sets the correct bit height first time and every time.
• With the height correct, only the fence needs to be adjusted for the perfect joint.
• Designed to work with our FN12 FitFinder but will work with any height gauge.
• Exclusive Glue Wells allow for tighter, easier to clamp joints by providing room for excess glue.
• Works with stock from 1/2" (13mm) through 3/4" (19mm) thick.
