Magswitch Mini Multi Angle - 8100350

Magswitch Mini Multi Angle

Now: $54.99 USD

Our magnetic workholding tool with multiple angles in one! Offers 45/135°, 60/120°, 75/105°, and 90° angles. Switch on and off 76 pounds of magnetic holding force. Features & Benefits: Magnet tur...More Details

Zoom

Estimated
$0.00 CAD

SKU	Weight	Max Breakaway	Magnetic Pole Footprint	2:1 Shear Working Load	Dimensions	Price
xWeight:xMax Breakaway:xMagnetic Pole Footprint:x2:1 Shear Working Load:xDimensions:Clear All

8100350	0.4 lbs (0.2 kg)	76 lbs (34 kg)	32mm x 72mm	6 lbs (2.7 kg)	2.8" x 1.3" x 2.6"	$54.99 USD
810035010+ Available$54.99 USD/ea

No Matching SKUs.

Details

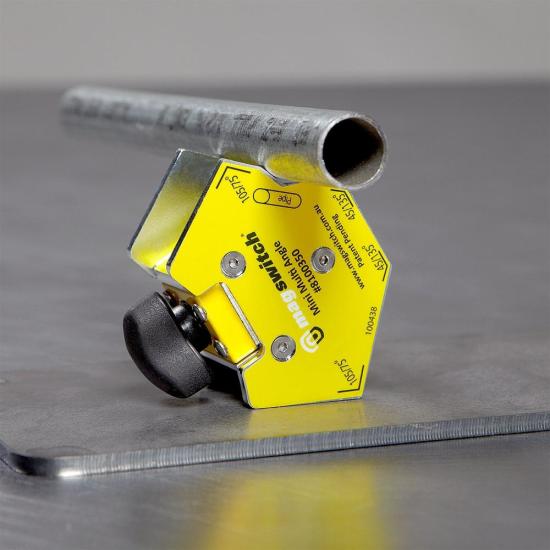

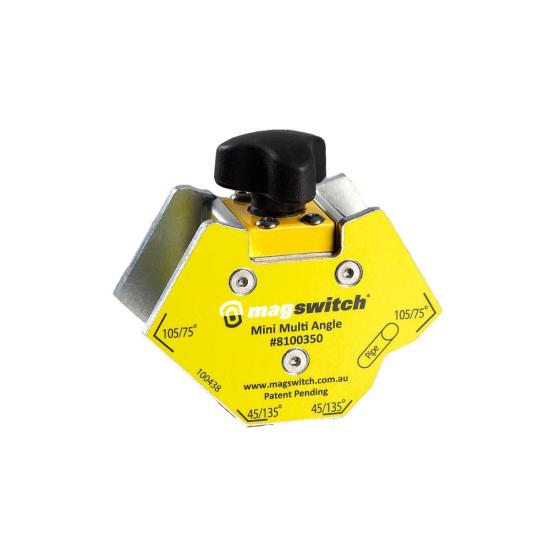

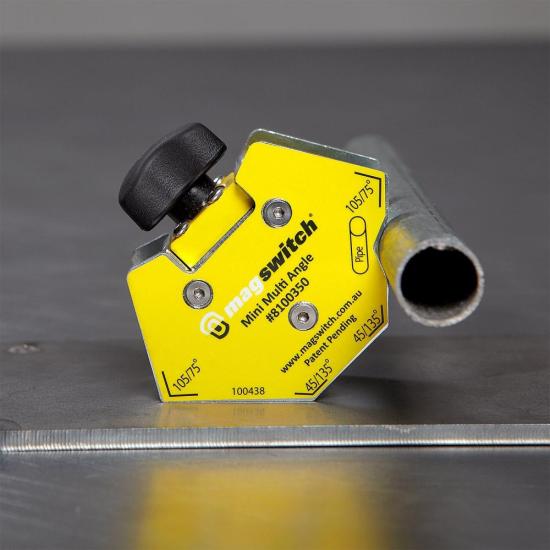

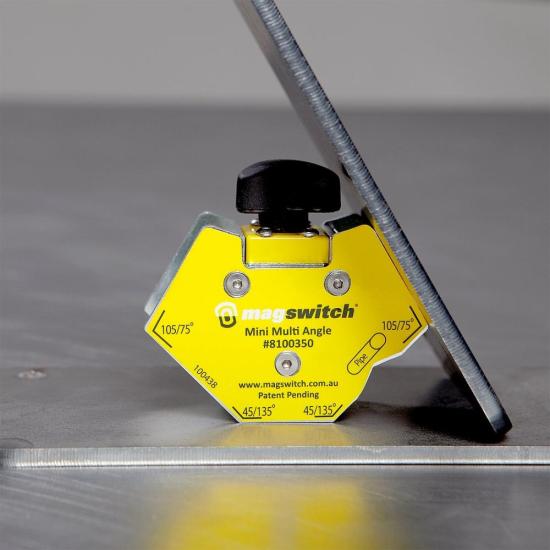

Our magnetic workholding tool with multiple angles in one! Offers 45/135°, 60/120°, 75/105°, and 90° angles. Switch on and off 76 pounds of magnetic holding force.

Features & Benefits:

Magnet turns completely on and off.
Magnet stays clean.
Does not use an electrical power source.
Holds flat and round surfaces of steel.
Accommodates flat sheets and pipes.
Offers several common angles.
Sturdy and compact.

Mini Multi Angle Downloads:

Mini Multi Angle Spec Sheet

Mini Multi Angle Step File

Magswitch Downloads:

Welding & Fabrication Brochure

Magswitch Manual Catalog

⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Less

Specifications

Weight	0.4 lbs (0.2 kg)
Max Breakaway	76 lbs (34 kg)
Magnetic Pole Footprint	32mm x 72mm
2:1 Shear Working Load	6 lbs (2.7 kg)
Dimensions	2.8" x 1.3" x 2.6"

Less
