Ironbark Low Angle Infill Block Plane DIY Kit

SKU of product changed to in carousel content
 $279.00 USD
Now: $279.00 USD
Logo
Zoom
Flag Icon
Estimated
$0.00 CAD
Question Mark Icon
Flag Icon
Estimated Total
Includes Duties
Help

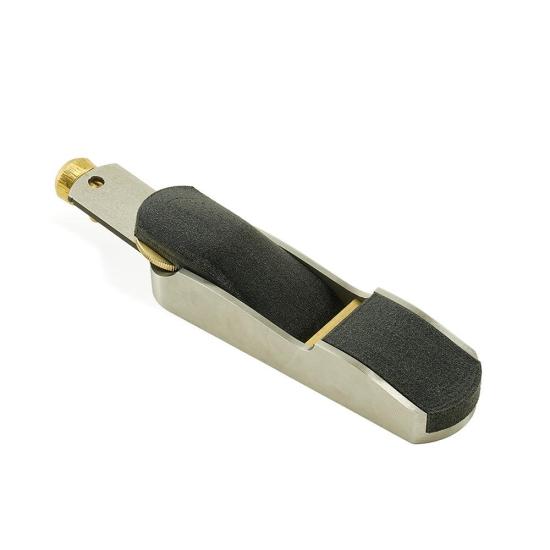

The Ironbark Infill Block Plane Kit offers skilled woodworkers the opportunity to build their own premium low-angle infill plane using the same precision-engineered components found in the finished Ironbark Infill Block Plane.

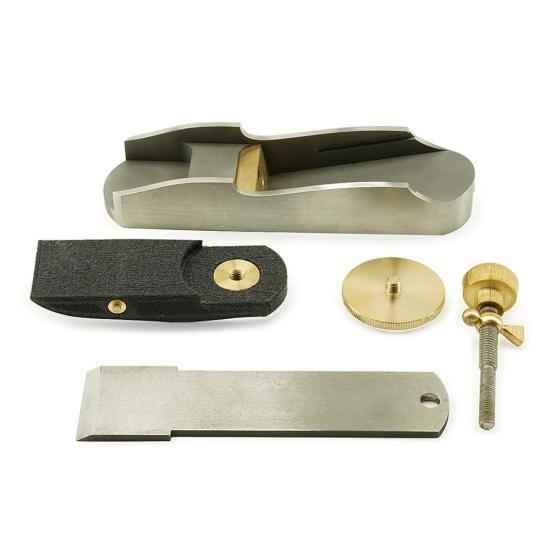

The kit includes all metal components fully machined to their final dimensions and tolerances, ensuring proper fit, alignment, and performance. These parts are intentionally left unfinished on their cosmetic surfaces, allowing the builder to apply their preferred surface treatment—such as brushed, satin, or hand-hammered finishes—resulting in a truly personal tool.

Detailed instructions are included for shaping and fitting the two wooden infill components, allowing you to select your own timber and tailor the look and feel of the plane to your preferences. The completed plane will match the performance, geometry, and cutting capability of the fully finished Ironbark Infill Block Plane.

This kit is ideal for experienced woodworkers and hand-tool enthusiasts who value both craftsmanship and involvement in the creation of their tools.

Specifications:

  • Body:
    • Stainless steel sole and sides machined from a single piece, with the mouth controlled by a removable brass insert
    • Sole flatness better than 0.050 mm (0.0020″ / 50 microns)
    • 12° Low Angle Bed
  • Blade:
    • 30 mm × 110 mm × 3 mm (1.18" × 4.33" × 0.118")
    • Ground to 25°, then honed and tested to product shavings under 0.001" thick on hardwood
    • M2 high-speed steel (18% tungsten), hardened to > 60 HRC
    • Includes both depth and lateral adjustments
  • Infill:
    • 3D Printed PETG - for referencing when building a custom infill
  • Plane Dimensions:
    • 135 mm × 37 mm (1.46" × 5.31"), plus adjuster screw
    • Mouth located 75 mm (2.95") from the rear of the plane
  • Mouth Adjustment:
    • Factory-set to approximately 0.4 mm (0.015″)
    • Adjustable via a removable brass insert secured by a single screw
    • Insert can be filed to enlarge the mouth; additional inserts can be made or purchased
    • Inserts may be fabricated from brass or wood
  • Adjustment Screw:
    • Left-hand thread for blade lateral adjustment
    • Right-hand thread into the plane body
  • Materials:
    • Stainless steel, brass, M2 high-speed steel, and premium hardwood
    • Lever cap and front infill are 3D printed PETG and are used as references for shaping custom parts.
  • Origin: Made in Australia
