iGaging 6" 4R Combination Square with 1/8", 1/16", 1/32 and 1/64" Graduations

iGaging 6" 4R Combination Square with 1/8", 1/16", 1/32 and 1/64" Graduations

SKU of product changed to in carousel content
 $35.99 USD
Now: $35.99 USD
 Logo
These compact 6” combination squares are indispensable for setting up machinery and performing a host of shop measuring and layout tasks. They fit nicely in the hand and slip in an apron pocket. Th...More Details
Zoom
Flag Icon
Estimated
$0.00 CAD
Question Mark Icon
Flag Icon
Estimated Total
Includes Duties
Help

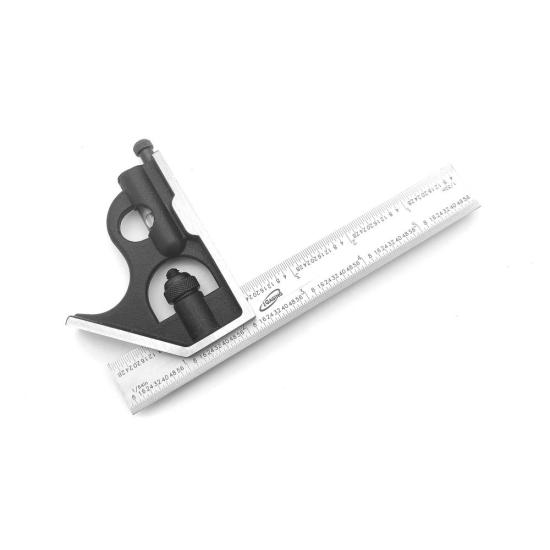

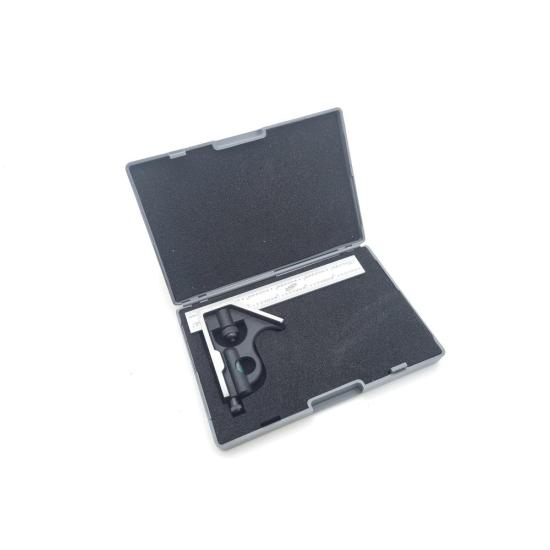

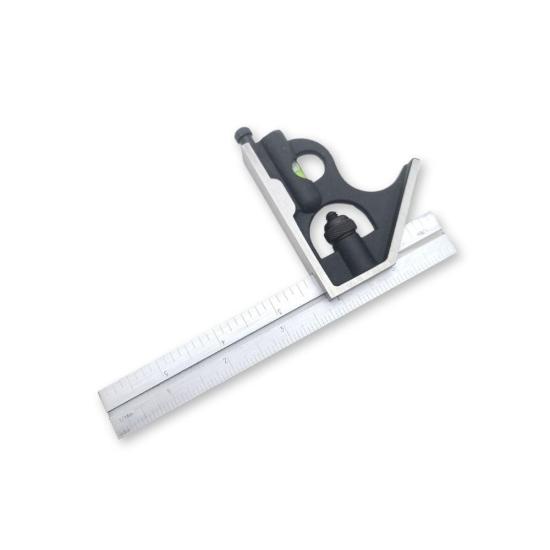

These compact 6” combination squares are indispensable for setting up machinery and performing a host of shop measuring and layout tasks. They fit nicely in the hand and slip in an apron pocket. The combination head works as both 90 and 45 degree references. They feature hardened, tempered steel blades with a satin-chrome finish that reduce glare and resists rust. The blade markings are precision laser-etched with quick-reading 4R markings with graduations in 1/8ths, 1/16ths, 1/32nds and 1/64ths. The square heads are cast, precision-machined and have a baked-on black finish. The heads lock down tight via a locking knob. Heads come with a steel scribing pin and built-in bubble level. Guaranteed square within 0.004” per 6”. Comes fitted in a padded storage case.

Specifications:

Head: 3-3/8” x 2-3/8” x 5/8”
Blade: 6” x 0.800” x 0.085”
