GRABO Slender Seal

Now: $52.00 USD

Zoom

Estimated
$0.00 CAD

xMaximum Lifting Capacity:Clear All

RK23002	132	$52.00 USD
RK230022 Available$52.00 USD/ea

No Matching SKUs.

Details

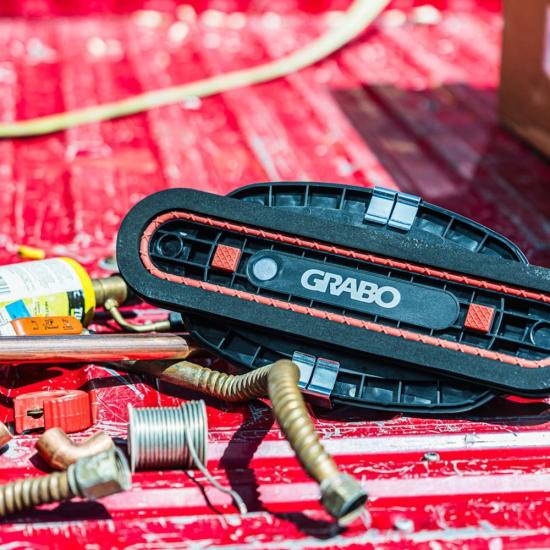

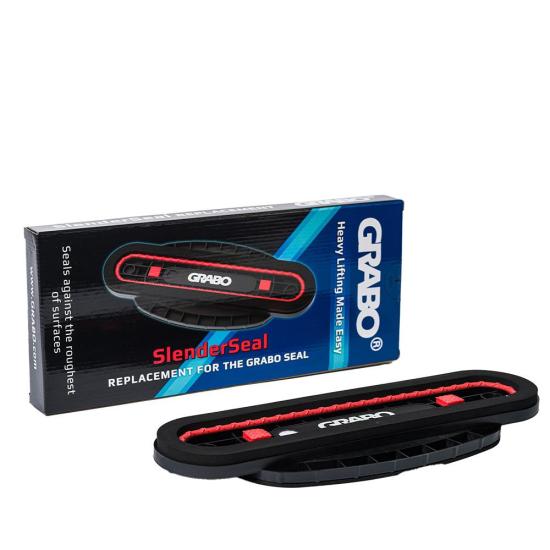

The GRABO Slender Seal expands the capability of your GRABO tool when working with narrow or uniquely shaped materials. Its longer, slimmer profile allows for secure lifting on surfaces that are difficult to handle with a standard seal.

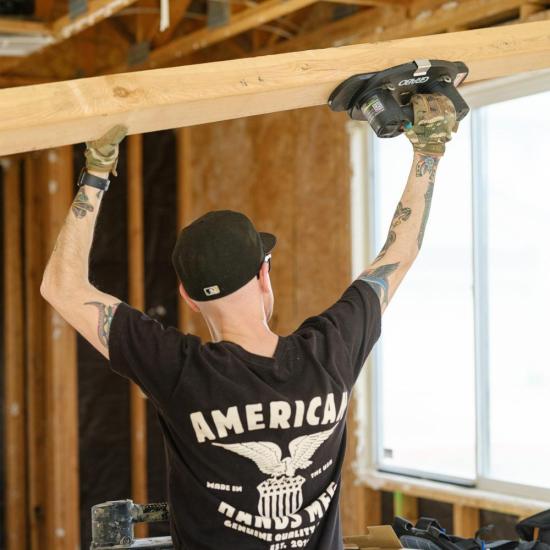

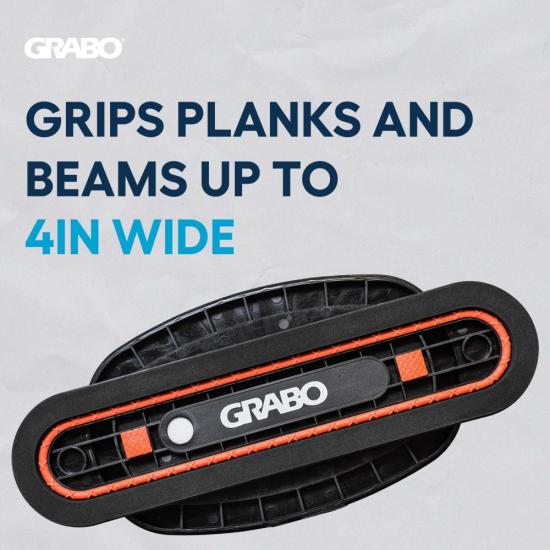

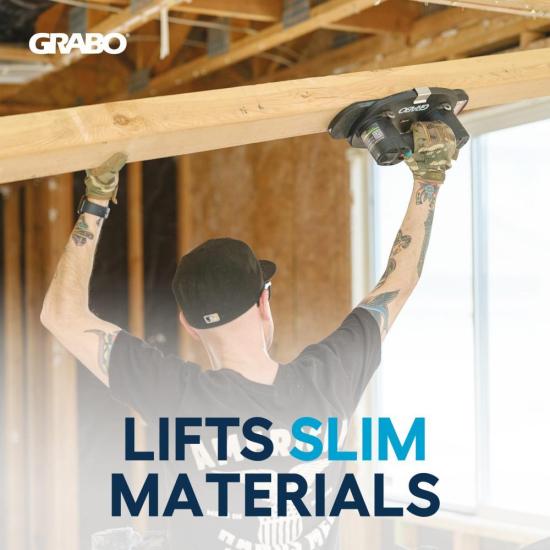

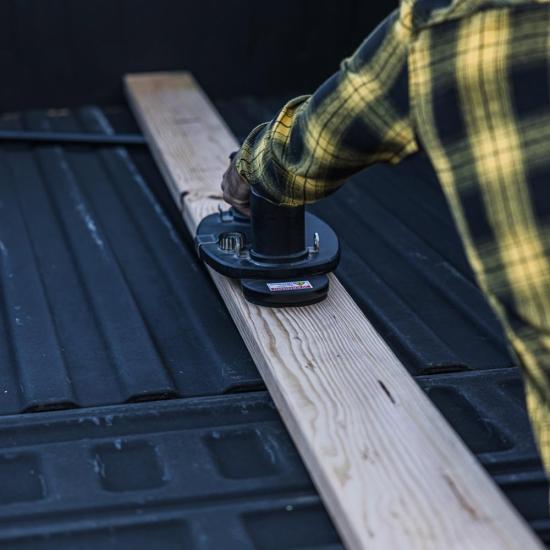

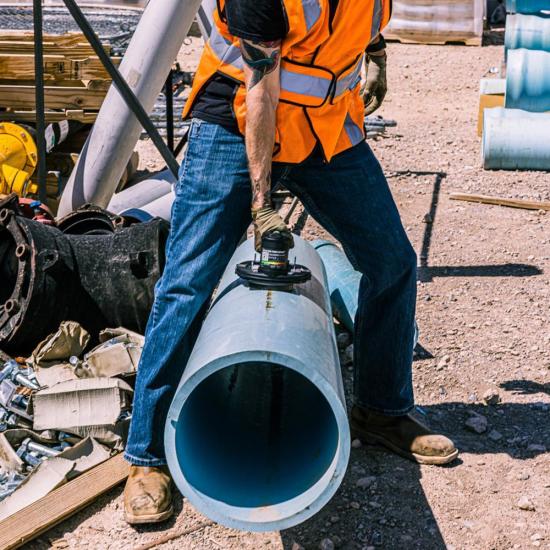

With a 4-inch wide design, it is ideal for materials such as plank tiles, wooden beams, pipes, and cut-to-size countertops. The specialized shape helps maintain strong suction while giving users better balance and control when lifting smaller or curved surfaces.

Built for durability and professional use, the Slender Seal is a practical upgrade for contractors and DIY users who need reliable performance when handling narrow materials.

Maximum Lifting Capacity is 132 lb (60 kg)

Black Foam Seal Specifications:

Material: SBR rubber foam sponge
L x W x H: 16.2 x 6.9 x 1.24” (411 x 175 x 31.5 mm)
Dimension of Seal: 371 x 65 mm
Density: 10.6 Lb/cft (170 kg/m^3)
Hardness, Shore C: 10_2
Tearing Pressure: 1800 Psi (126 kg/cm^2)
Compression to 25% size at: 8.5 Psi (6000 kg/m^2)
Lifetime (Compressions till performance reduction): ~900
Water Absorption, %: <=5
Shrinkage at 160F (70C) for 24 hrs, %: <=20

Red Seal Specifications:

Material: Silicon Foam
L x W x H: 16.2 x 6.9 x 1.24” (411 x 175 x 31.5 mm)
Density: 40.5 Lb/cft (650 kg/m^3)
Hardness, Shore C: 55_5

Lifting Capacity:

Glass

Perpendicular Hold Z

Maximum Value: 264 lbs (120kg)
Safe Value（50%): 132 lbs (60kg)

Parallel Hold X

Maximum Value: 110 lbs (50kg)
Safe Value（50%): 55 lbs (25kg)

Parallel Hold Y

Maximum Value: 220 lbs (100kg)
Safe Value（50%): 110 lbs (50kg)

Metal

Perpendicular Hold Z

Maximum Value: 242 lbs (110kg)
Safe Value（50%): 121 lbs (55kg)

Parallel Hold X

Maximum Value: 110 lbs (50kg)
Safe Value（50%): 55 lbs (25kg)

Parallel Hold Y

Maximum Value: 220 lbs (100kg)
Safe Value（50%): 110 lbs (50kg)

Wood

Perpendicular Hold Z

Maximum Value: 187 lbs (85kg)
Safe Value（50%): 94 lbs (43kg )

Parallel Hold X

Maximum Value: 66 lbs (30kg)
Safe Value（50%): 33 lbs (15kg)

Parallel Hold Y

Maximum Value: 176 lbs (80kg)
Safe Value（50%): 88 lbs (40kg)

Rough Concrete

Perpendicular Hold Z

Maximum Value: 264 lbs (120kg)
Safe Value（50%): 132 lbs (60kg)

Parallel Hold X

Maximum Value: 110 lbs (50kg)
Safe Value（50%): 55 lbs (25kg)

Parallel Hold Y

Maximum Value: 220 lbs (100kg)
Safe Value（50%): 110 lbs (50kg)

⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
