GRABO HighFlow

Now: $599.00 USD

Zoom

Estimated
$0.00 CAD

xMaximum Lifting Capacity:Clear All

GHF-V1	150	$599.00 USD
GHF-V15 Available$599.00 USD/ea

No Matching SKUs.

Accessories

GRABO HighFlow Battery

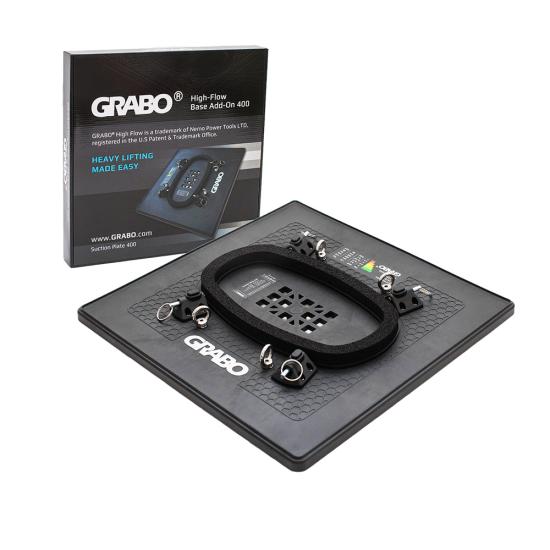

GRABO Suction Plate 400

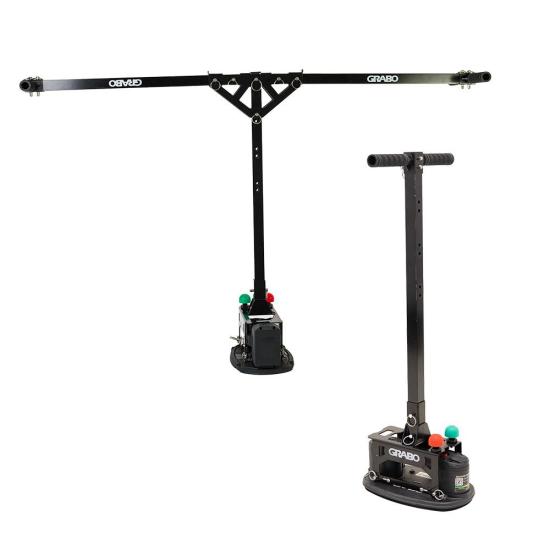

GRABO Erguo T

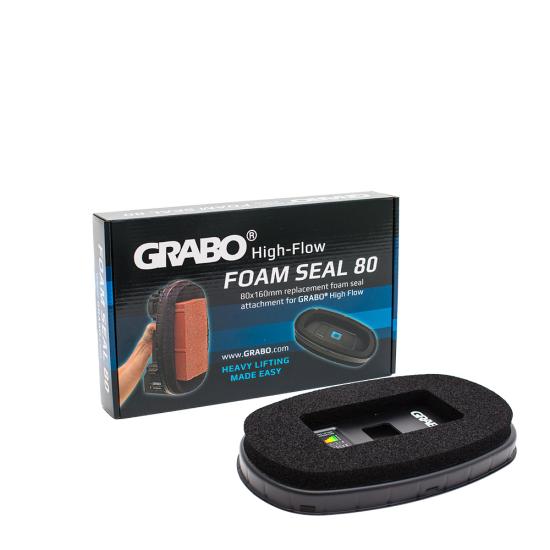

GRABO HighFlow Open Cell Foam Seal

Details

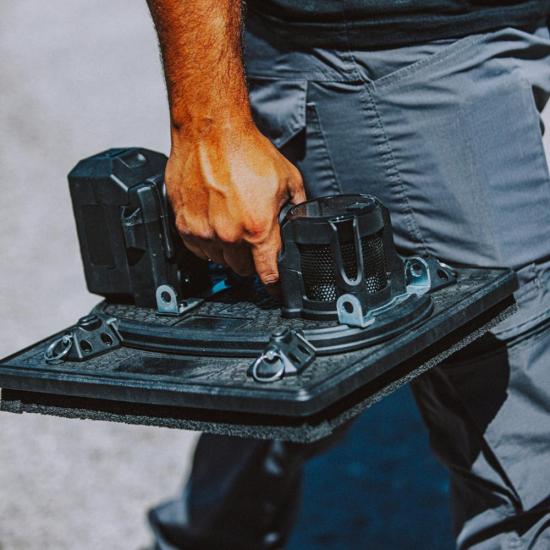

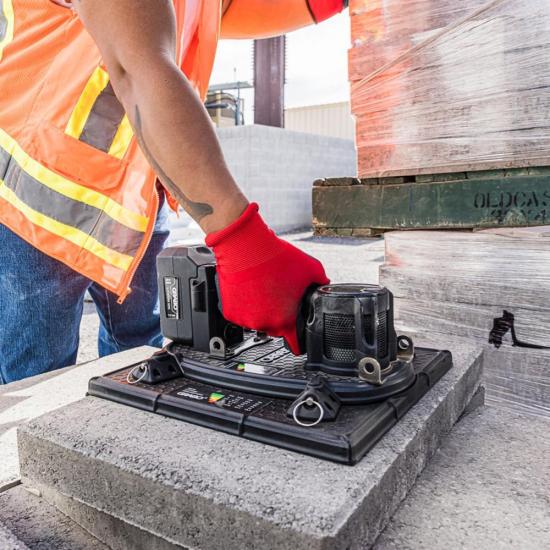

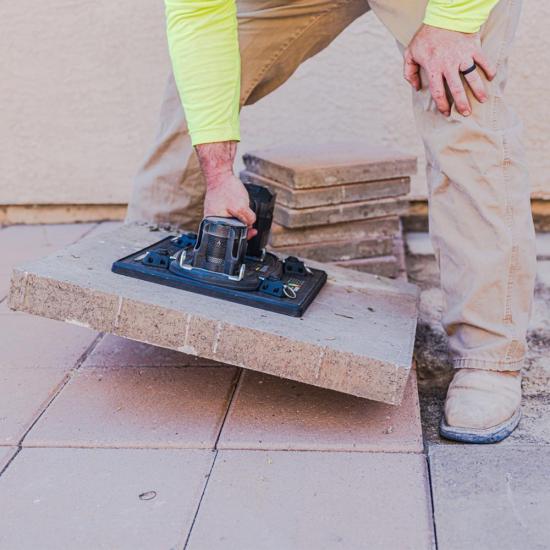

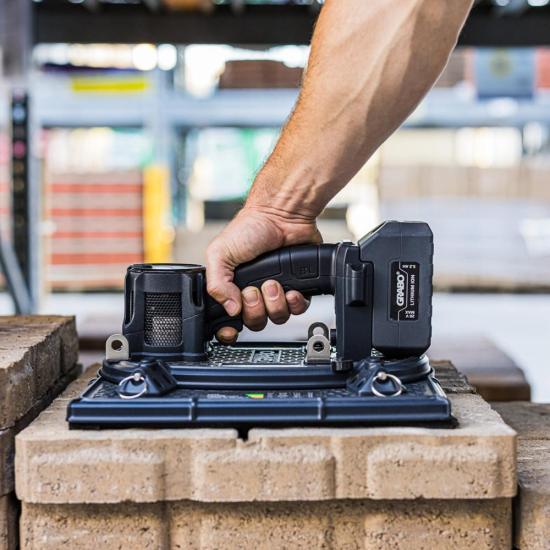

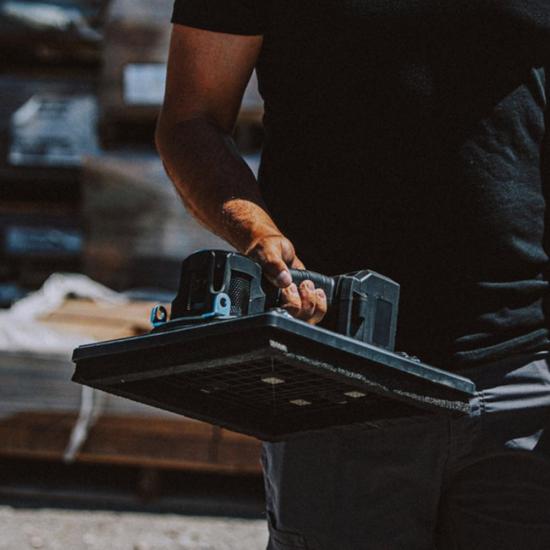

The GRABO® HighFlow stands as GRABO's most advanced tool, offering more power and improved vacuum technology, revolutionizing how challenging objects are handled. This versatile, portable electric vacuum lifter effortlessly handles a variety of materials, including some of the most EXTREMELY porous materials. Its innovative design features a SMART CUT foam seal and a user-friendly T-handle, significantly simplifying and improving the ergonomics of laying outdoor pavers. Tailored for efficiency, the GRABO® HighFlow excels at handling rough, highly porous materials such as Dry Cast Pavers, ensuring a firm grip and safe handling, even on the most EXTREMELY textured material.

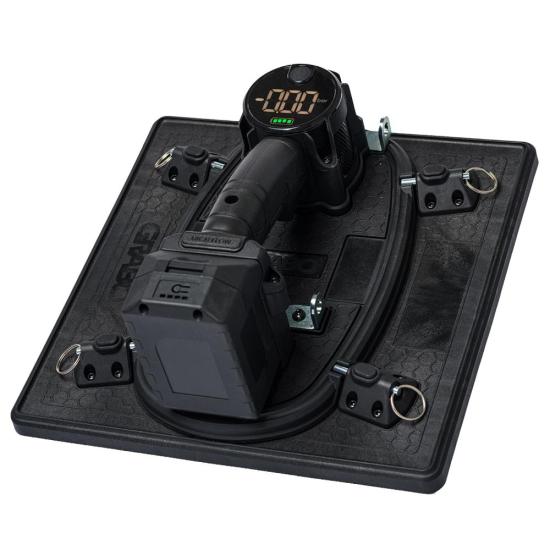

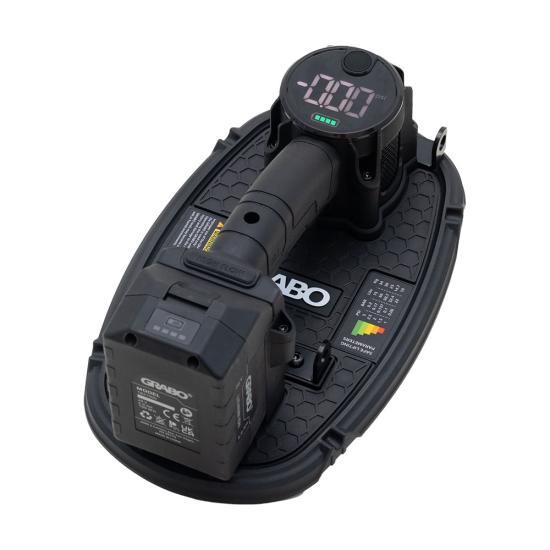

The top of the tool features a large LED digital display that shows your real-time PSI or BAR pressure, so users will always know how much pressure the tool is exerting on that specific material. With our new powerful GRABO® 20-volt battery, the HighFlow is rated to lift up to 150 lbs (68 kg) when used with our new Suction Plate 300 attachment.

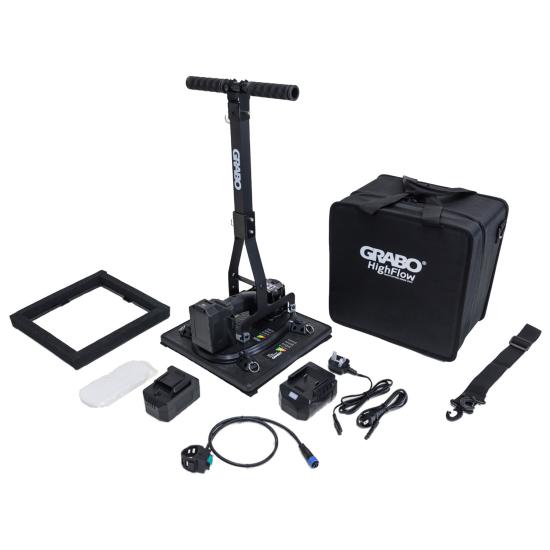

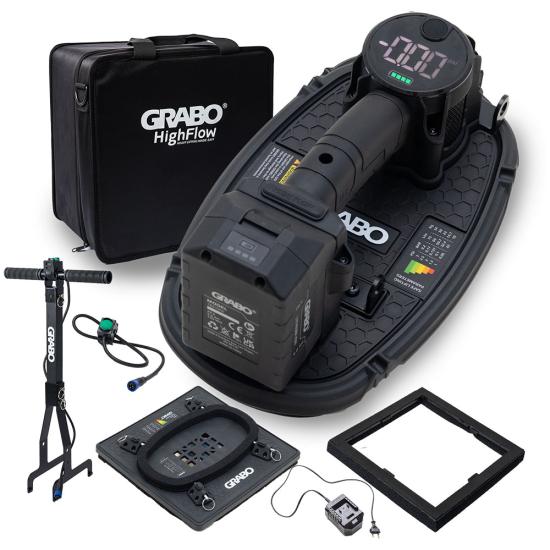

GRABO® HighFlow Kit includes:

GRABO® HighFlow tool

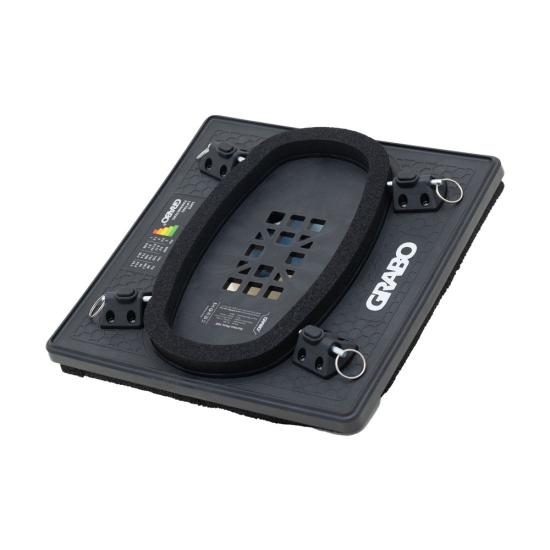

Suction plate 300mm with SMART CUT foam seal
Two (2) GRABO® HighFlow Batteries
Battery Charger

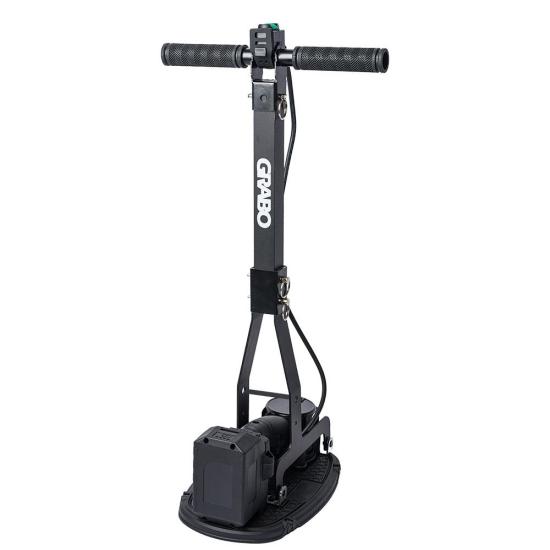

T-Bar handle attachment with wired remote control ON/OFF Cable
Spare foam seal 300mm
Extra Filter
Operator’s manual
HighFlow Canvas Carrying Case

GRABO® HighFlow Specifications

Dimensions: 300 x 184 x 148 mm / 11.8 x 7.2 x 5.8 inches
Net weight (with the 300*300 add-on and battery): 2.9 kg / 6.4lbs
A-weighted sound pressure level*: LpA=79.4 dB(A), uncertainty K=3 dB(A)
A-weighted sound power level*: LwA=71.4 dB(A), uncertainty K=3 dB(A)
Vibration total value**: 1.240 m/s2, uncertainty K=0.11 m/s2
Rated power: 160 W
Maximum vacuum rate: -0.20 Bar (-20 kPa)
Suction Plate 300 Dimensions: 316 x 316 x 17.3 mm

Battery Specifications

Battery type: Model TB21000
Battery rated capacity: 5.0 Ah
Nominal voltage / charge voltage: 18 V / 21 V
Charge current: 4 A
Working time (full charge): 30 mins
Operating temperature: 32 – 115°F (0 – 45°C) Charge, -4 – 140°F (-20 – 60°C) Discharge
Long-term battery storage (> 3 months): 0°C – 30°C / 32°F – 86°F charged to 18.5–19.5V (80–90% of full charge)

Battery Charger Specifications

Charging output voltage: 21 V
Charging output current: 3.6-4.4 A underload, 4.5 A max
Overcharge protection: 4.25 V
Charging input: 100 – 240 V AC; 50/60 Hz; 2A max
Rated power: 84W
Operating temperature: 0°C – 40°C / 32°F – 104°F
Storage temperature: -10°C – 75°C / 14°F – 167°F
Working conditions: Indoor use only; not waterproof (IP0)

Less

Specifications

Maximum Lifting Capacity	150

Less
