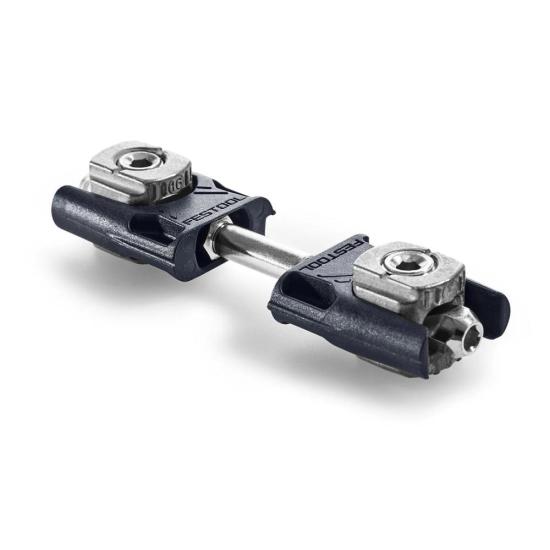

Festool Center Panel Connector - MSV-LR32 D8/25 (25 pack)

Now: $94.00 USD

Zoom

Estimated
$0.00 CAD

SKU	Plate Thickness	Joint Fixture (8 mm DOMINO dowel cross-cuts)	DOMINO Routing Depth For Base Part	Drilling Diameter In Base Part	Drilling Diameter For Euro Bolt	Price
xPlate Thickness:xJoint Fixture (8 mm DOMINO dowel cross-cuts):xDOMINO Routing Depth For Base Part:xDrilling Diameter In Base Part:xDrilling Diameter For Euro Bolt:Clear All

203169	3/4 - 1-1/8"	D8	1-1/8" (28 mm)	5/8	1/16	$94.00 USD
2031691 Available$94.00 USD/ea

No Matching SKUs.

Details

For DF 500

Perfect joinery. Now with even more versatility. The new knock-down DOMINO basic structure connectors and furniture connectors.

The new DOMINO connectors make knock-down joinery simple and stable. Quickly and easily assemble, separate, and reassemble your work for increased flexibility across a wide range of applications – from corner panel joints to center panel joints to joints between a series of holes. For increased stability, speed, and flexibility.

The new DOMINO basic structure connectors and furniture connectors can be positioned simply and universally – in combination with DOMINO or a series of holes.
Because of its high tolerance compensation and high stability, the detachable DOMINO jointing system enables seamless assembly and disassembly of a piece of furniture – in the workshop as well as with the customer.
All joints are simple and quick to machine using the DOMINO DF 500 joiner. No additional special machine is required.
The connectors' large tightening distance and long bolts make furniture assembly significantly easier. Cupboard assembly is therefore no problem, and you can do it easily on your own.
Routing and cutting tolerances of up to 1.4 mm are compensated for without problems by the fixture.
The clever DOMINO system enables very simple and precise positioning of joints, thereby rendering additional stops and positioning aids unnecessary. For working efficiently and quickly.

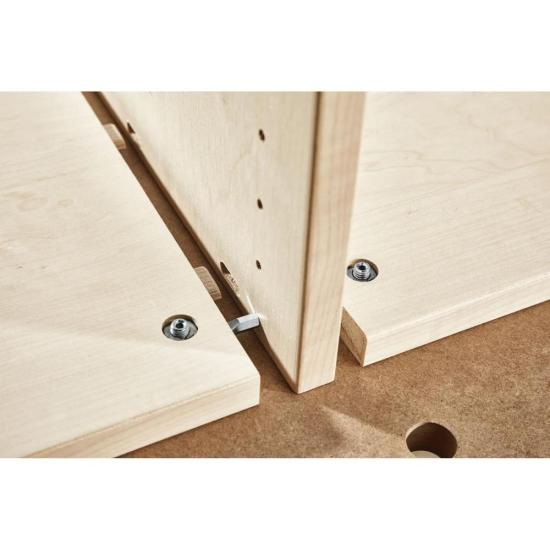

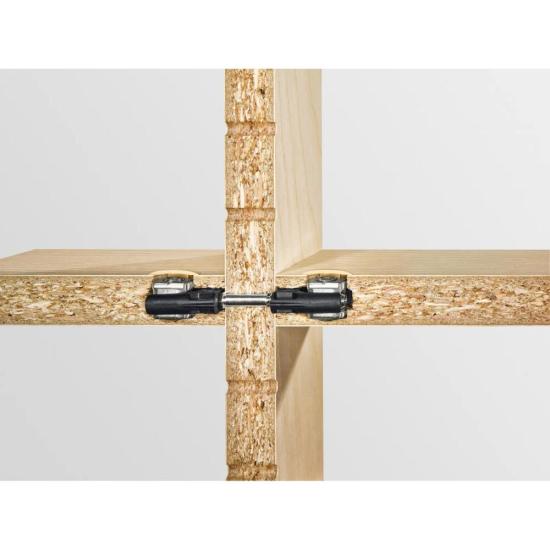

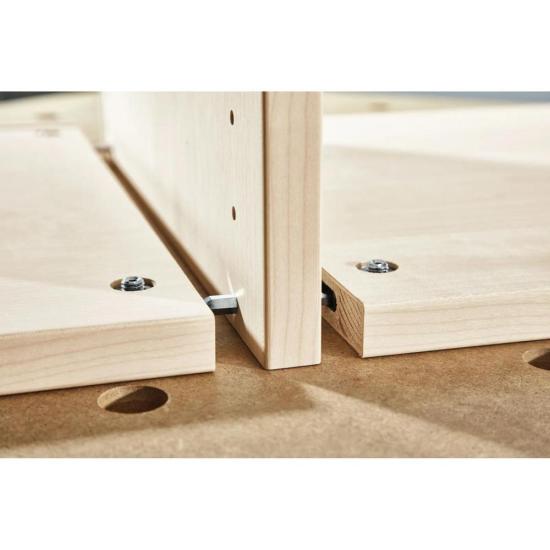

For 25 center panel joints with the DF 500 and drilling series of holes
Drill template is required for drilling holes in the surface of the DOMINO D 8 mm joint fixture

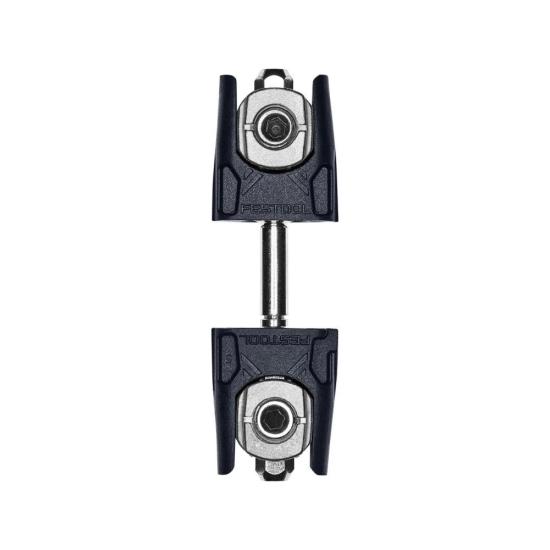

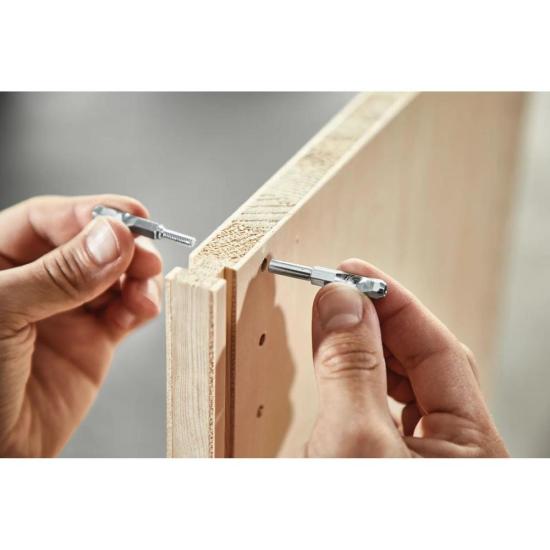

The DOMINO/LR 32 MSV-LR 32 D8/25 connector is positioned both in the cupboard panel in a 5 mm hole in the series of holes and the base of the structure with the DOMINO jointer DF 500
Without cover caps

Specifications:

Plate Thickness: 3/4 - 1-1/8"
Joint Fixture (8 mm DOMINO dowel cross-cuts): D8
DOMINO Routing Depth For Base Part: 1-1/8" (28 mm)
Drilling Diameter In Base Part: 5/8
Drilling Diameter For Euro Bolt: 1/16

⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
