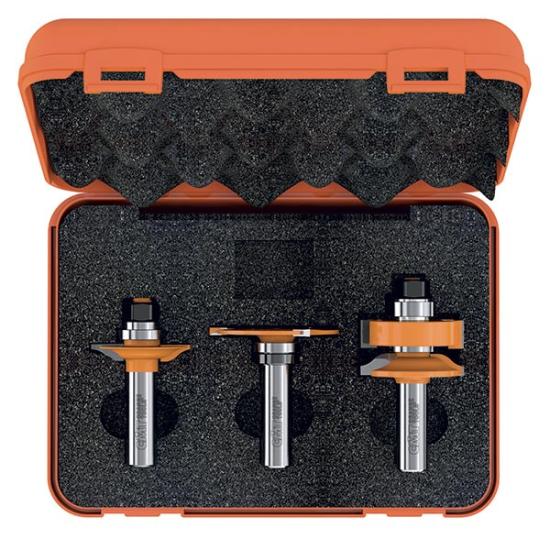

CMT Orange Tools 3 Piece Glass Panel Carbide Tipped Router Bit Set

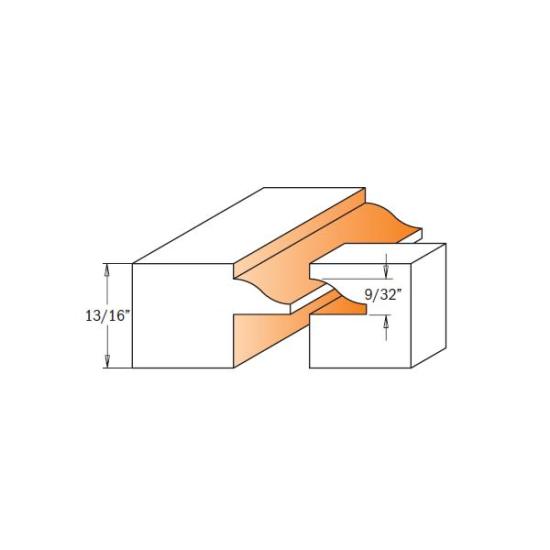

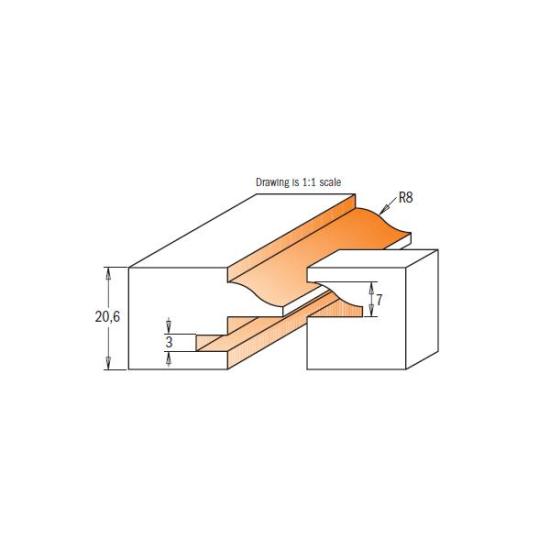

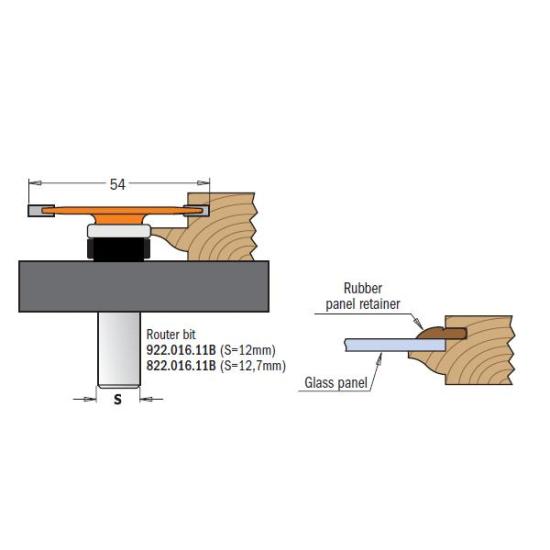

CMT’s unique stile and rail router bit sets are designed for producing glass panel doors. They feature a rubber panel retainer that secures the glass in a 3.2mm (1/8") slot cut into the frames. These bits function similarly to other CMT stile and rail sets but leave a square rabbet on the inside of the door for glass panel installation.

CMT carbide tipped router bits produce flawless profiles due to the following features:

SUPERIOR HIGH STRENGTH STEEL BODIES: CMT uses only high-quality, solid bar stock sourced from Switzerland, which provides exceptional resistance to fatigue and abrasion. Larger diameter bodies are heat forged before turning into precise bit bodies. This extra step produces a radial grain orientation which offers large diameter bits extra strength and durability. All machining fully automated ensuring the shanks and bodies are accurate and perfectly balanced.

ANTI-KICKBACK DESIGN: This design controls the depth of cut and minimizes the chance of kickback, reducing your risk of injury.

SINTERHIP HI-DENSITY INDUSTRIAL CHROME CARBIDE: CMT uses specially formulating chrome carbide specially designed to cut wood and laminates. A new process called SinterHIP (Hot Isostatic Pressing), helps prevent material failure and increases cutting life.

TRI-METAL BRAZING: CMTs silver-copper-silver brazing “sandwich” provides a tight bond between the steel and the carbide, with a shock absorbing effect to protect the carbide tips when cutting harder woods and reduces the chance of failed welds.

NON-STICK ORANGE SHIELD COATING®: Prevents bit from heating up, reduces pitch build-up, protects against corrosion, and provides a longer bit life.

MULTI-AXIS GRINDING CREATES A MIRROR FINISH LASTING 3X LONGER: Sharpening is done to extreme precision on multi-axis CNC machines. Each bevel and angle are ground or sharpened to the micron, to produce a cutting edge that is both razor sharp, yet extremely durable.
