Bessey Rapid-Action Lever Clamp

Now: $74.00 USD

Zoom

Estimated
$0.00 CAD

Clear All

LC4	$74.00 USD
LC410+ Available$74.00 USD/ea

No Matching SKUs.

Details

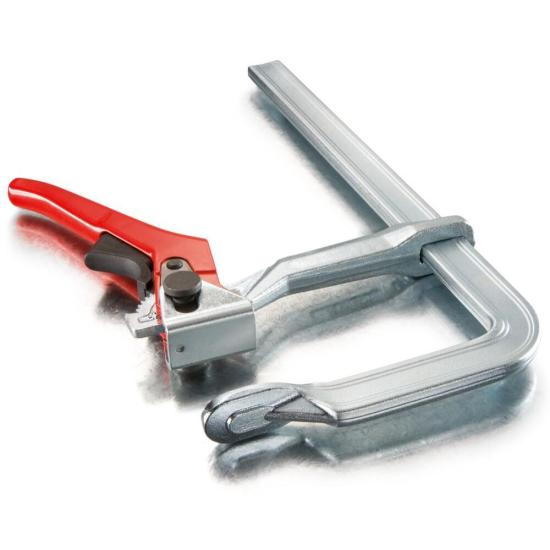

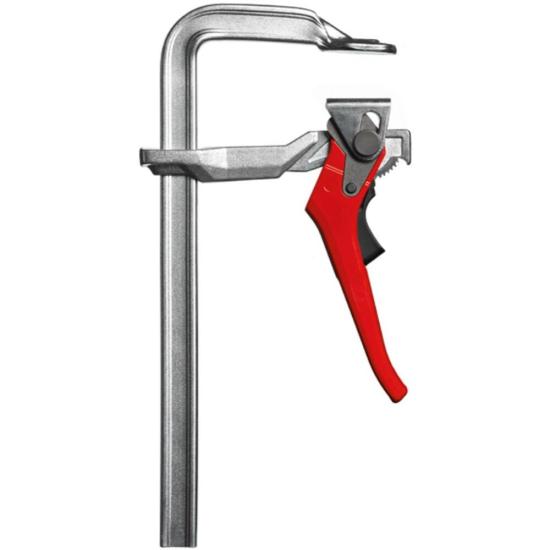

The BESSEY LC4 Rapid-Action Lever Clamp combines the speed of a quick-action clamp with the holding power of a traditional all-steel bar clamp. Its patented lever-actuated ratchet mechanism clamps up to five times faster than conventional screw clamps while maintaining a secure, vibration-resistant grip.

Built in Germany, the LC4 features a patented profiled steel rail that delivers increased rigidity and up to 20% greater clamping force than traditional rail designs. A drop-forged sliding arm, tempered fixed jaw, and hardened cam mechanism provide exceptional durability, while the ergonomic powder-coated lever and plastic-coated release trigger allow for comfortable one-handed operation and quick repositioning. Ideal for woodworking, welding, fabrication, assembly, and production work where speed and repeatability are essential.

Features:

Clamps up to 5× faster than conventional screw clamps
Delivers 400 lbs. (1,780 N) of clamping force
Patented profiled rail provides greater rigidity and increased clamping force
Secure ratchet mechanism resists vibration and accidental loosening
Drop-forged sliding arm for long service life
Tempered fixed jaw and pressure plate for maximum strength
Ergonomic powder-coated lever with plastic-coated release trigger
Made in Germany

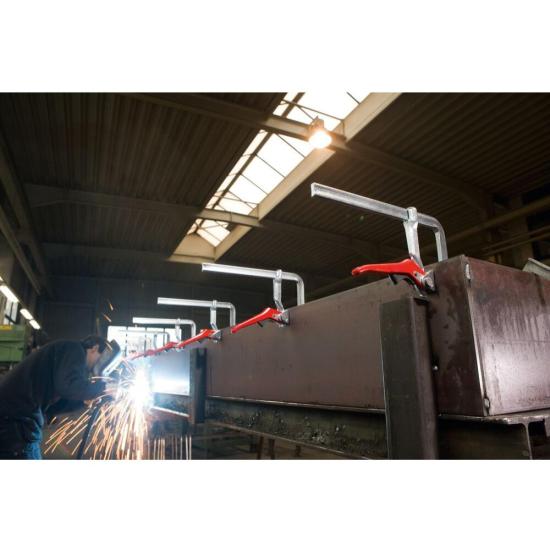

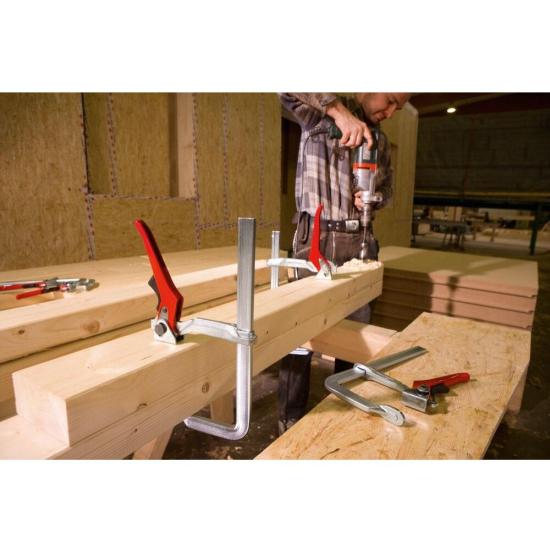

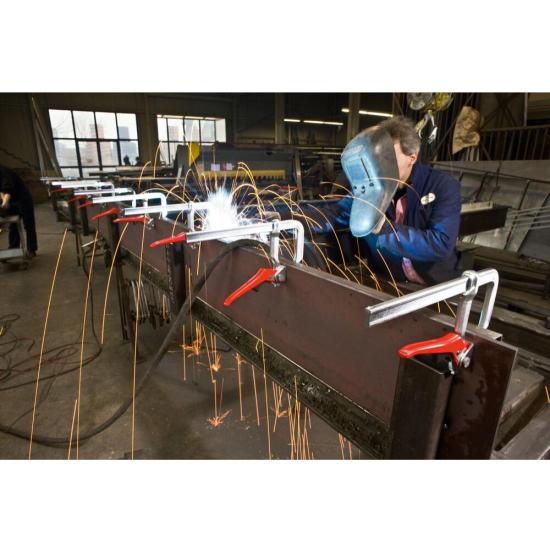

Ideal for woodworking, welding, fabrication, assembly, and production applications

Specifications:

Model: LC4
Product Type: Rapid-Action Lever Clamp
Clamping Capacity: 4" (102 mm)
Throat Depth: 2-3/8" (60 mm)
Maximum Clamping Force: 400 lbs. (1,780 N)
Rail Type: Patented Profiled Steel Rail
Sliding Arm: Drop-Forged Tempered Steel
Fixed Jaw: Tempered Steel
Clamping Mechanism: Lever-Actuated Ratchet
Release Mechanism: Plastic-Coated Trigger
Handle: Ergonomic Powder-Coated Steel Lever
Approximate Weight: 1.10 lbs. (0.50 kg)
Country of Origin: Germany
Applications: Woodworking, welding, fabrication, assembly, production, fixture work, and general shop use
