Bessey Lever Clamp classiX®

$69.00 USD - $109.00 USD

Zoom

Estimated
$0.00 CAD

CLAMPING CAPACITY

Clamping Capacity of product changed to NEWSALE in carousel content

CLAMPING CAPACITY

4" (120 mm)
19-11/16" (500 mm)

SKU	Weight	Clamping Capacity	Throat Depth	Clamping Force	Release Mechanism	Rail Style	Rail Size	Price
xWeight:xClamping Capacity:xThroat Depth:xClamping Force:xRelease Mechanism:xRail Style:xRail Size:Clear All

GSH12	1.09 lbs (0.49 kg)	4" (120 mm)	2-3/8 " (60 mm)	400	Non-Slip Trigger	Classic Profiled Rail	.53" x .26" (13.5 mm x 6.5 mm)	$69.00 USD
GSH12 10+ Available$69.00 USD/ea

GSH50	5.71 lbs. (2.59 kg)	19-11/16" (500 mm)	4-3/4" (120 mm)	1,685 lbs. (7,500 N)	Non-Slip Trigger	Classic Profiled Rail	0.98" × 0.47" (25 × 12 mm)	$109.00 USD
GSH5010+ Available$109.00 USD/ea

No Matching SKUs.

Details

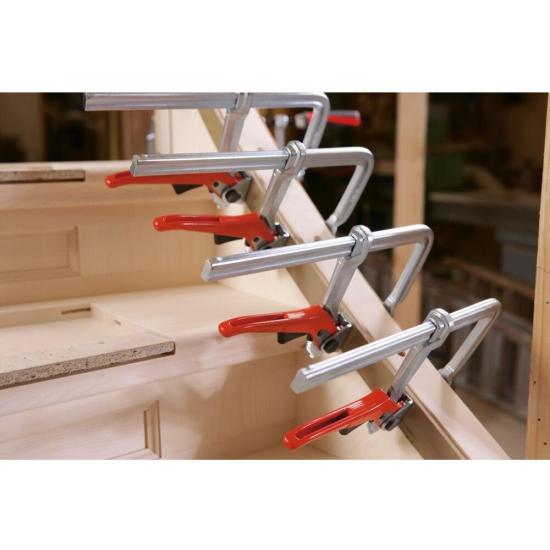

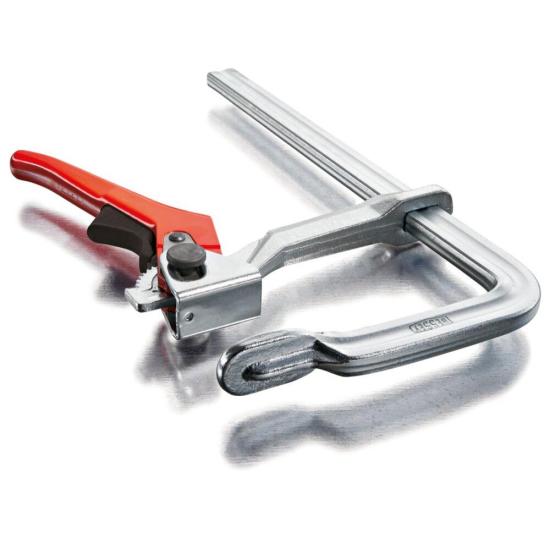

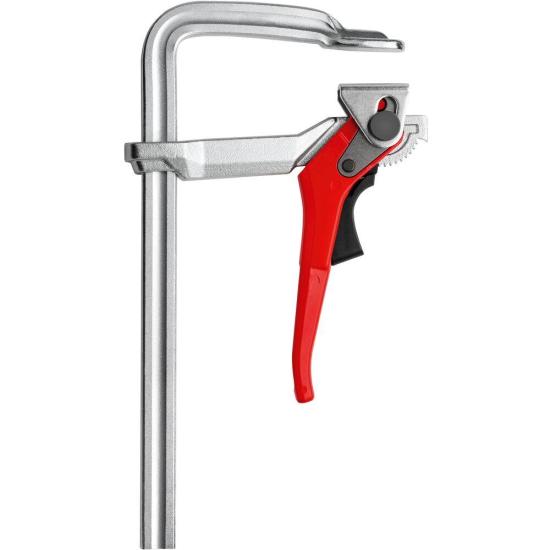

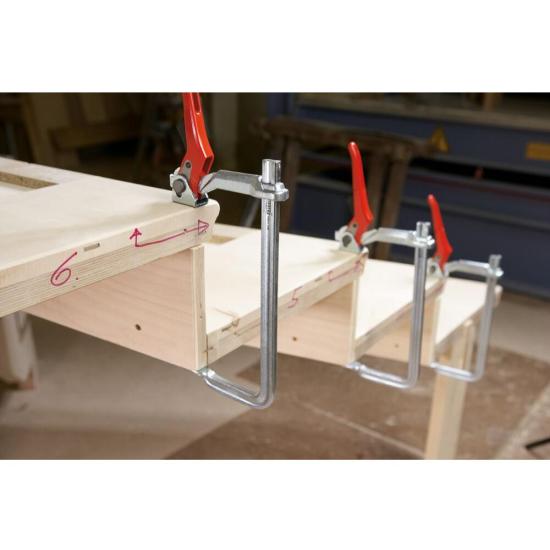

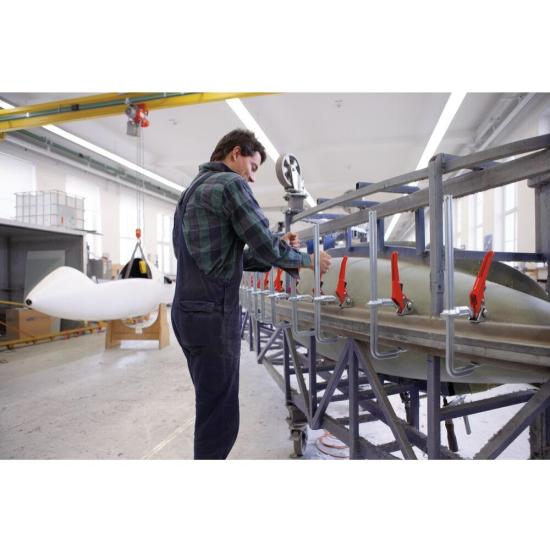

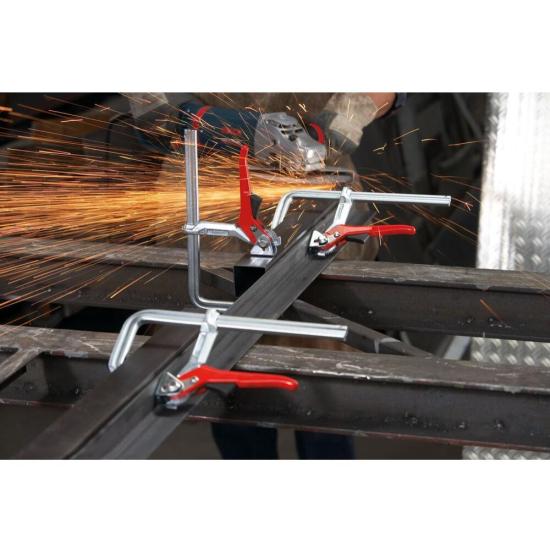

The BESSEY classiX® GSH Lever Clamp delivers fast, vibration-resistant clamping with the durability of an all-steel construction. Its quick-action lever mechanism clamps up to 5 times faster than conventional screw clamps, making it an excellent choice for production work, assembly, welding, woodworking, and metal fabrication.

A non-slip trigger release allows quick, controlled repositioning, and the forged sliding arm combined with a tempered fixed jaw provides exceptional strength and long service life. The classic profiled rail offers reliable performance for demanding shop environments.

Features:

Clamps up to 5× faster than traditional screw clamps
Vibration-resistant lever locking mechanism
Non-slip trigger release for fast repositioning
Heavy-duty all-steel construction
Tempered fixed jaw and pressure plate for maximum durability
Drop-forged sliding arm for long service life
Ergonomic powder-coated lever handle for comfortable operation
Ideal for woodworking, metal fabrication, welding, assembly, and production work

Less

Specifications

SKU	Weight	Clamping Capacity	Throat Depth	Clamping Force	Release Mechanism	Rail Style	Rail Size	Price

GSH12	1.09 lbs (0.49 kg)	4" (120 mm)	2-3/8 " (60 mm)	400	Non-Slip Trigger	Classic Profiled Rail	.53" x .26" (13.5 mm x 6.5 mm)	$69.00 USD
GSH12 10+ Available$69.00 USD/ea

GSH50	5.71 lbs. (2.59 kg)	19-11/16" (500 mm)	4-3/4" (120 mm)	1,685 lbs. (7,500 N)	Non-Slip Trigger	Classic Profiled Rail	0.98" × 0.47" (25 × 12 mm)	$109.00 USD
GSH5010+ Available$109.00 USD/ea

No Matching SKUs.

Less
