Benchdog Tools Quad MFT Hinge System with Dog Hole Plate

Benchdog Tools Quad MFT Hinge System with Dog Hole Table Plates without 346 Drilling Jig

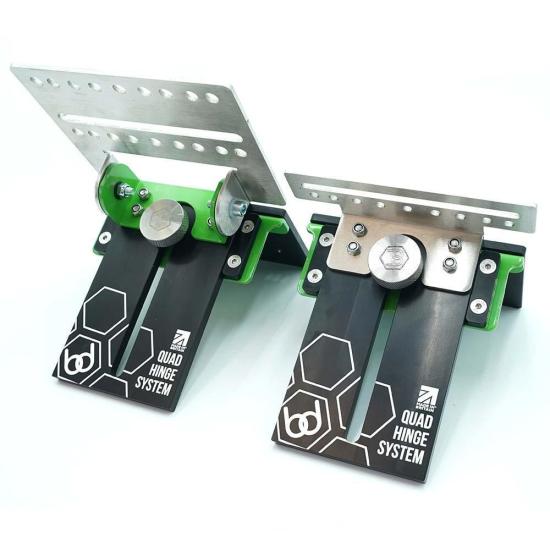

The Benchdogs MFT Quad Hinge System with dog hole table plates allows you to attach a pivoting track saw hinge system to the top all types of multifunction tables with 20 mm holes on 96 mm centers located less than 35 mm from the table edge. To install, simply drop each hinge table plate into two 20 mm dog holes and tighten the hex screws to lock each hinge component into position.

If your table does not have 20 mm dog holes 35 mm or less from the edge, to use this system, you will need to create these holes using the Benchdog 346 hole jig MK4. You can offset your holes 32, 48 or 64mm from your first row of holes. For using a Metabo, you will need a maximum of 30mm from the edge of the table.

Note: Using the drop-in MFT Quad Hinge System with dog hole plates sits on top of your table and reduces the usable space between hinge components by 4-3/4″.

When selecting a track that works with your MFT table, you would need a track 11” (280mm) minimum plus the width of your table.

Simple and easy to set up on the Job site, Workshop or Home hobby setup.

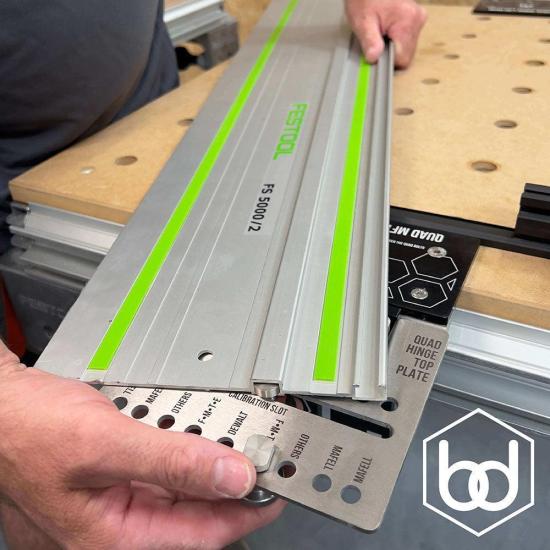

To offer the best accuracy, the hinge systems come with a pin slot & alignment pin and rail bolts specific to your brand of track saw hinge.

Features of our Hinge System

• Universal can be used from left to right or right-to-left setups
• Tables with side extrusion slots are not required.
• Precision machined with 6082 Aluminum.Brackets & plates are made with 304 Stainless Steel.
• Under Rail Support stop for Benchdogs Fence
• Compatible with most tracks with a T-slot on the underside of the rail.
• Can be easily adjusted to achieve perfect 90 degree cuts

What you will receive:

• 1 x Quad Pivoting Hinge System
• 1 x Quad Hinge Support
• 1 x Pin Slot Kit
• 2 x Rail Bolts (selected by brand)
• 4 x 20mm Dog Hole Table Plates (Quad Bases)
• 4 x M6 x 25 Countersunk fixings
• 1 x M4 Washer
• 1 x 4mm Hex Key
• 2 x Spare Washers

Proudly made in Britain by Benchdog Tools 🇬🇧
