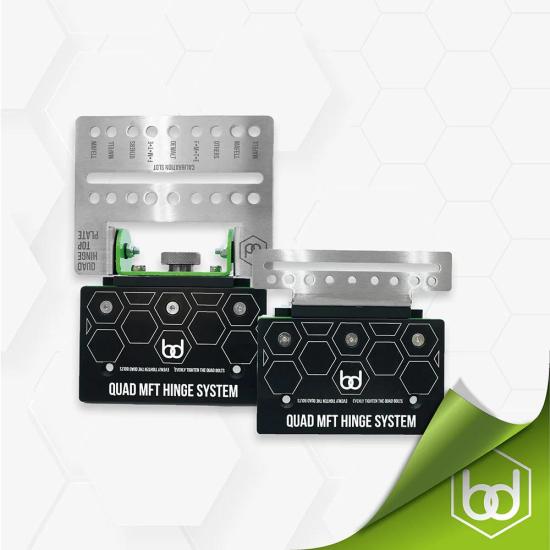

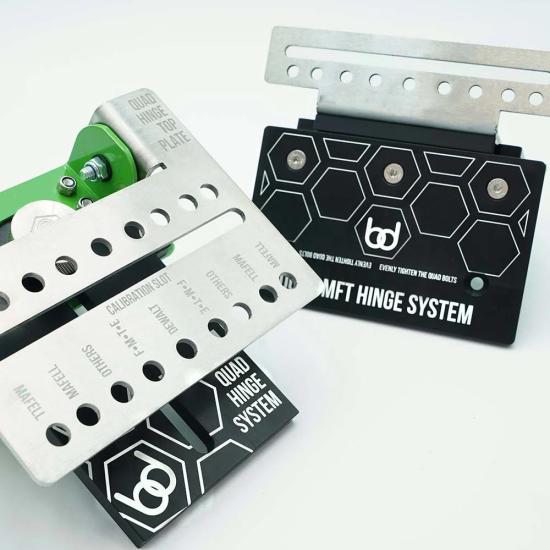

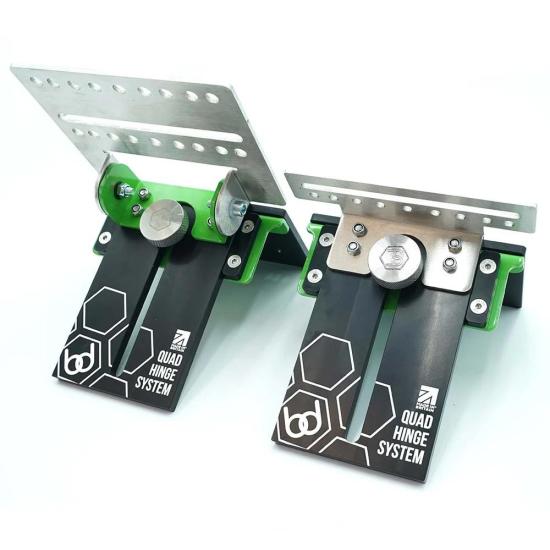

Benchdog Tools Quad MFT Hinge System - Universal

Our Hinge System allows you to attach it to all types of Multifunction Tables with 20mm holes and 96mm centres without having to attach it to an extrusion like the MFT3 from Festool or others using a variety of extruded aluminium profiles.

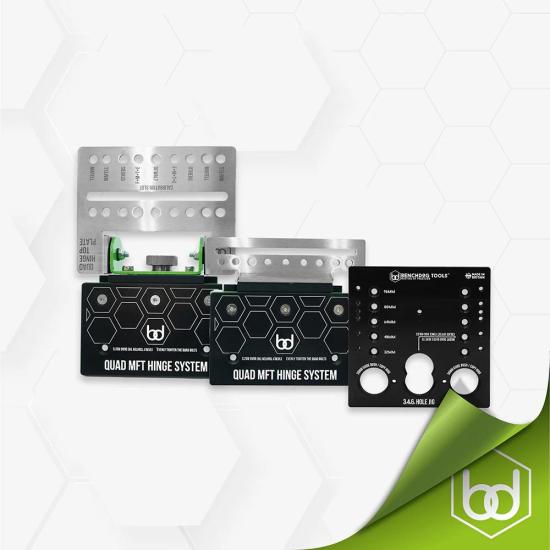

All that is required to set this up is to have some additional holes, which can be made with our 346-hole jig MK4

Simple and easy to set up on the Job site, Workshop or Home hobby setup.

Setting the holes for the hinge requires a max of 35mm from the edge and can be set with 32, 48 or 64mm from your first row of holes. This can be achieved with the 346-hole jig MK4. For using a Metabo, you will need a maximum of 30mm from the edge of the table.

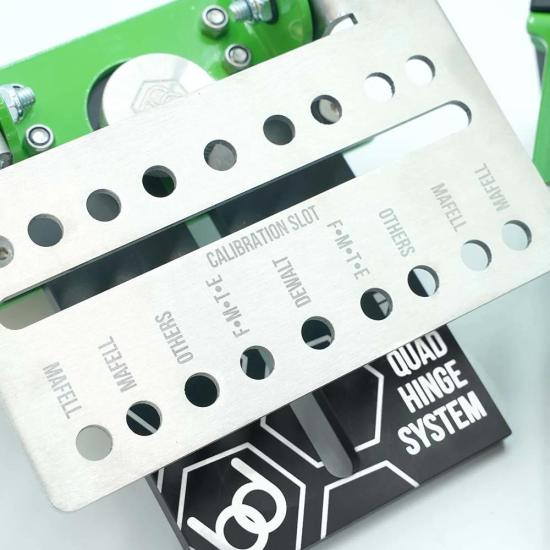

To offer the best accuracy, the hinge systems will come with a pin slot & alignment pin and rail bolts.


Features of our Hinge System:

    • Universal can be used from left to right or right-to-left setups
    • No extrusion is required.
    • Precision machined with 6082 Aluminium.
    • Brackets & plates are made with 304 Stainless Steel.
    • Under-rail support stop for Benchdogs Fence
    • Compatible with most tracks with a T-slot on the underside of the rail.
    • MFT Inaccuracy adjustment
    • New Universal connection Kit

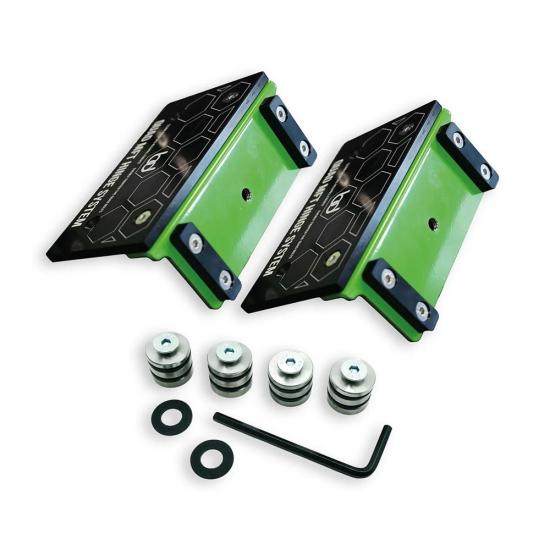

What you will receive:

    • 1 x Quad Hinge System with Support Plate
    • 4 x 20mm Quad Bases
    • 4 x M6 x 22 Countersunk fixings
    • 1 x 4mm Hex Key
    • 2 x Spare Washers

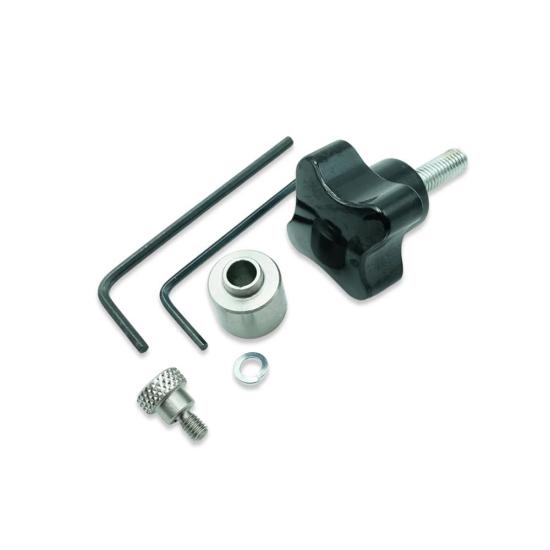

    Pack 1 - Universal
    - M6 x 20 Thumbscrew
    - Main Bush
    - M4 Thumbscrew and Split Washer
    - 2mm Hex Key
    - 2.5mm Hex Key

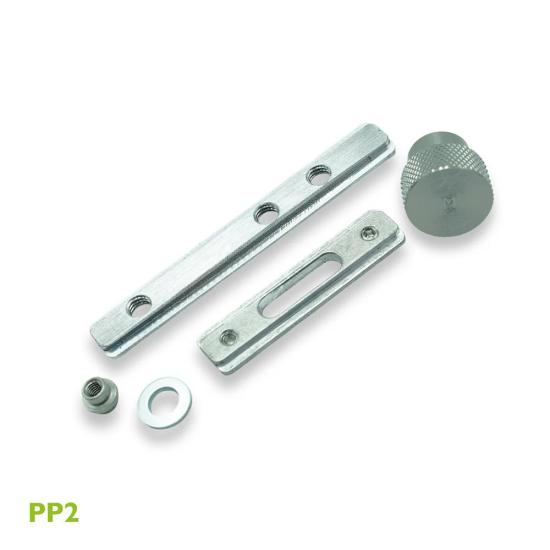

    Pack 2 - Mafell
    - Pin Slot and Pin
    - Track Bar
    - 'M' Thumbscrew
    - M6 washer

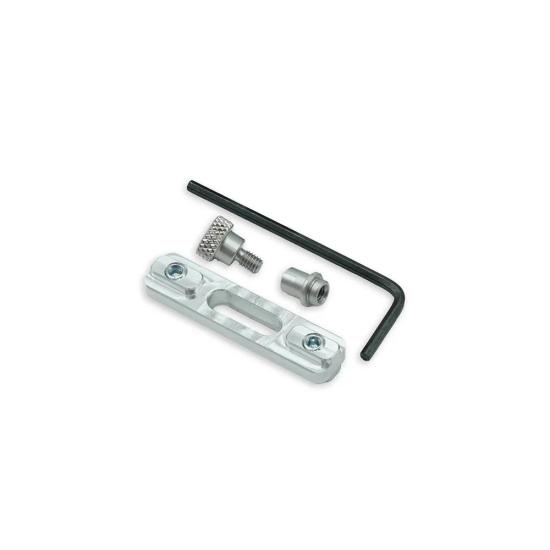

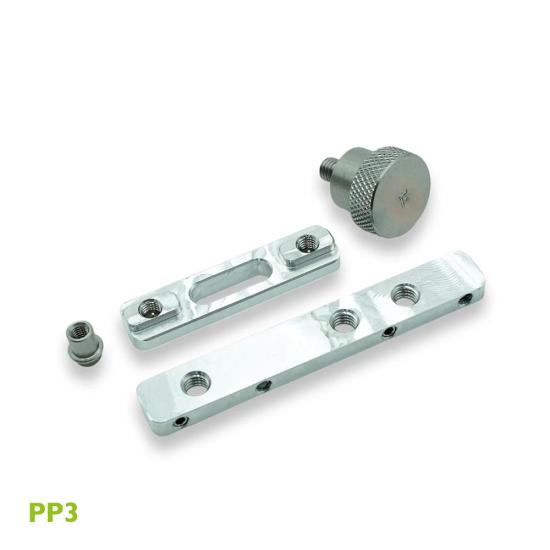

    Pack 3 - Festool Style
    - Pin Slot and Pin
    - Track Bar
    - 'F' Thumbscrew

Please note:   When measuring for a track that works with an MFT table saw, you would need a track of 240mm minimum plus the width of the table.

The 30mm Guide Bush is not included with the Hinge System.

Proudly made in Britain by Benchdog Tools
