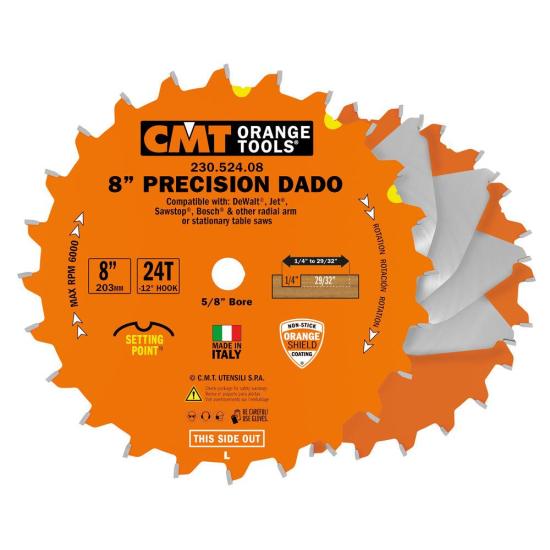

CMT Orange Tools 8" Precision Dado Blade Set, 24-Teeth, FTG + ATB grind

CMT designed this new Dado Precision Set with the following features:

Ideal for tongue & groove, shelving and rabbets in in solid wood, laminates & melamines, veneer plywood.
Orange Shield Coating protect from heat, gumming and corrosion.
New Setting Points for chippers alignment.
Includes shims and spacers set for micro-thinadjustability

4 total chippers: 4 x 1/8”

2 total shims: 2 x 1/16"

8 total shims: 2 x 0.004", 2 x 0.008", 2 x 0.012" , 2 x 0.020"

Able to cut dados from 1/4" to 29/32"

Model number: 230.524.08

Applications: shelving, tongue & groove, rabbets

Machines: table saw, radial arm saw

Material: softwood, hardwood, plywood, melamine

Finish quality: “Excellent” for ripping wood and plywood and “Good” for ripping and crosscutting plywood

Size: 8”

Bore: 5/8”

Teeth: 24

Grind: chippers are flat top grind and blades are flat top grind and alternate top bevel

Read instructions sheet before use (you can also download it from our website). Always use both outside blades. Never use the chippers by themselves, or with only one outside blade. Securely fasten CMT Dado on machine using manufacturer’s recommended dado arbor nut.

Tooth hook angle: -5 degrees

⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
