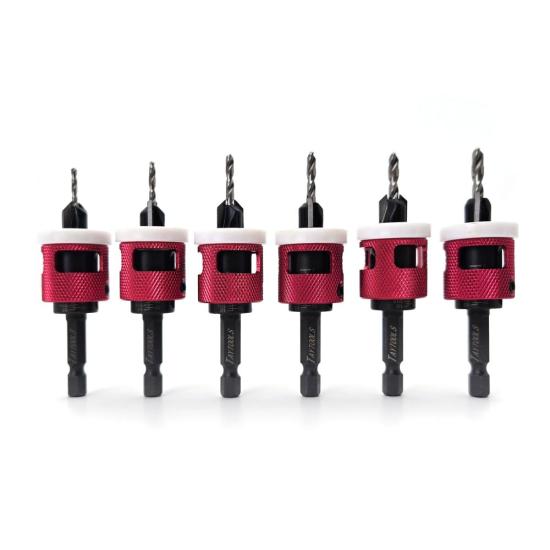

Taytools 6-Piece Set Carbide Tipped Countersinks with Non-Mar Adjustable Rotating Depth Stops and Quick Release Hex Shanks

SKU of product changed to6pc_Countersink in carousel content
 $39.99 USD
Now: $39.99 USD
Logo
Zoom
Flag Icon
Estimated
$0.00 CAD
Question Mark Icon
$39.99 USD/ea  49% OFF
Out of Stock
 This product is not available for immediate shipment.
Flag Icon
Estimated Total
Includes Duties
Help

The adjustable depth control allows users to create flush or recessed countersink holes, accommodating screws or plugs. The bit and countersink depth can be adjusted without disassembly, making it quick and easy to fine-tune. Additionally, the integrated chip evacuation slots ensure clean and efficient drilling.

Perfect for use on softwoods, hardwoods, plywood, sheet goods, decking, and solid surface materials.

Features:
  • 6-piece set contains the follwing drill sizes: 5/64", 3/32", 7/64", 1/8", 9/64" and 5/32" and will handle screws from #4 to #14.
  • Drills countersink and pilot hole in one operation
  • Rotating HDPE depth stop prevents burning, marring, and scratching
  • Depth stop and pilot drill are adjustable without disassembling the unit. (comes with Allen key)
  • HSS pilot drill bit included
  • 3/8” carbide-tipped countersink
  • Quick-release hex shank for fast bit changes
  • Double-flute pilot drill and countersink for smooth drilling
  • Available in multiple pilot sizes (2mm, 5/64" (#4 screw) to 4mm, 5/32" (#12 screw))
  • Each bit packaged in a protective tubes
Specifications:
  • Quick-release hardened steel hex shank body
  • 3/8” diameter carbide-tipped two-flute countersink
  • Anodized aluminum rotating depth stop with HDPE ring
  • HSS pilot drill bit with flats to prevent rotation
  • Can drill countersinks up to 1/2” deep
Recommended screw pilot holes sizes:
  • #4: Softwoods: 1/16” Hardwoods: 5/64”
  • #5: Softwoods: 5/64” Hardwoods: 3/32”
  • #6: Softwoods: 3/32” Hardwoods: 7/64”
  • #7: Softwoods: 3/32” Hardwoods: 7/64”
  • #8: Softwoods: 7/64” Hardwoods: 1/8”
  • #9: Softwoods: 1/8” Hardwoods: 9/64”
  • #10: Softwoods: 1/8” Hardwoods: 9/64”
  • #12: Softwoods: 9/64” Hardwoods: 5/32"
  • #14: Softwoods: 5/32” Hardwoods: 11/64”
    ⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    Reviews

    4.7 out of 5.0 4.7 stars(9)
    From:
    5/5
    Carbide tipped countersinks
    Carbide tipped countersinks are made well and affordable. Great product at a great price.
    From:
    5/5
    Taytools shoots and scores
    I finally have modern, legitimate countersink bits. And for the price of one Amana countersink, Taytools has a whole set. These work perfectly as expected.
    From:
    5/5
    Excelent value
    Great value countersinks. Way less than buying the equivalent popular ones to get multiple sizes. HDPE stop is gentile on wood. Hex shank makes using it with hand drill a snap.
    From:
    5/5
    Great Countersinks!!
    I ordered these as soon as I saw them. I used them almost immediately after opening and they are very easy to adjust. Taylor toolworks is the best. Thanks.
    From:
    3/5
    No mar counter simk bits
    After the first use I was disappointed to find the adjustment set screws were not of a good quality. They seem to be rounded and the Allen wrenches slipped. Had to use my other set screws to make it work. Low quality.
    From:
    5/5
    What size is this one?
    It would be nice if these could have had their sizes stamped on the collar or shaft somewhere.
    From:
    5/5
    A Great Countersink Set
    These counter-sinks are extremely well made, fully adjustable, come in every size typically needed for woodworking and work very well. There is a small design improvement needed, however. The housing for the non-marking counter-sink stop is cut in such a way that it must be nearly fully retracted in order to adjust the length of the drill bit using the bit's set screw. I typically spend more time adjusting the length of the bit to accommodate different screw lengths than in adjusting the amount of counter-sink. Most of my counter-sinks are flush or just below flush; a deeper counter-sink is used only when I'm going to install plugs to cover the screw heads. Therefore, the design should make it possible to adjust the drill bit length without changing the counter-sink depth setting. I did this by milling a 3/16" slot into the lower portion of the counter-sink's housing so that the drill bit set screw can be adjusted even with the counter-sink all the way upward toward the drill bit. I can send a picture or attach it if the next screen will let me do so.
    From:
    4/5
    FINALLY! (Sort of)
    I bought two sets, one for my daughter, and one for me. I'd been looking for something like this since I saw a Boeing surplus one, saw some but were too expensive. The ad stated that they were from one screw size to another, but that information wasn't on the labels. Since my daughter lives in Zurich, I also went through each and (at least) added millimeter sizes, which might have been too much to ask for. Thanks!
    From:
    5/5
    Works as promised
    I've only used them a few times so far, but the times I have used them, they have done an excellent job.
