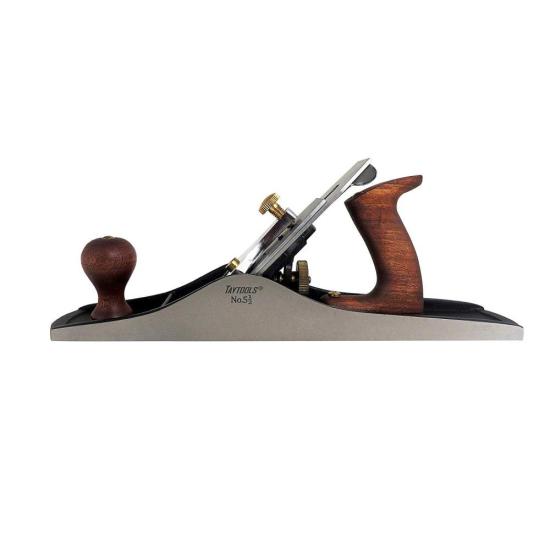

Taytools #5-1/2 Jack Smoothing Bench Hand Plane, 14-3/4" Sole, 2-3/8" Wide Blade 465944

(4.0) Read All 2 Reviews

270070

Now: $124.99 USD

Zoom

Estimated
$0.00 CAD

SKU	Blade Width	Blade Thickness	Overall Length	Weight	Overall Width	Bed angle	Price
xBlade Width:xBlade Thickness:xOverall Length:xWeight:xOverall Width:xBed angle:Clear All

270070	2-3/8	.120	14-3/4	6.9 lbs	2-7/8	45 deg	$124.99 USD
27007010+ Available$124.99 USD/ea

No Matching SKUs.

Details

This #5-1/2 jack plane is the perfect tool to smooth and flatten areas and will achieve an produce an accurate and smooth finish. This jack plane is ideal for the cabinet maker and discerning woodworker. The body and frog are made from ductile cast iron. The sole and sides are precision machined to within 0.003" over the entire length of the sole. Overall length is 14-3/4" and width is 2-7/8". The knob and tote are carefully shaped, sanded, oiled and hand-rubbed Sapele. The 0.120" thick and 2-3/8" wide tool steel iron is hardened and tempered to 55-60 HRc. This plane has appropriate mass and weighs in at 6.9 pounds. The frog can be adjusted forward and back. The lever cap is made from plated cast iron. Cap iron screws and adjusting wheels are made from polished brass. Bed angle is 45 degrees. **Plane irons may need to be sharpened and honed before use**

Specifications:

Blade Width: 2-3/8
Blade Thickness: .120
Overall Length: 14-3/4
Weight: 6.9 lbs
Overall Width: 2-7/8
Bed angle: 45 deg
