Magswitch Magwheel 95 - 8100401

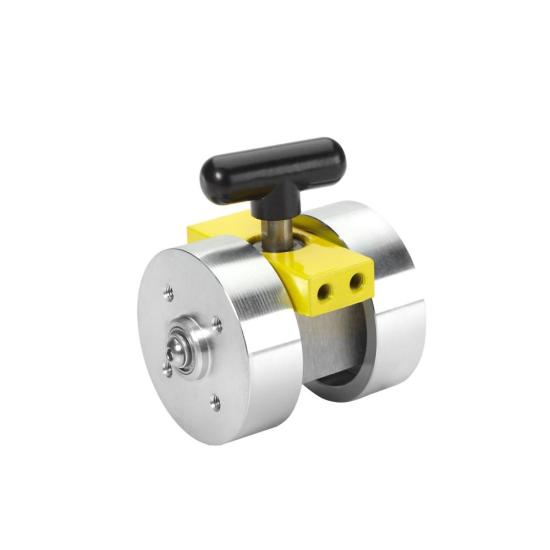

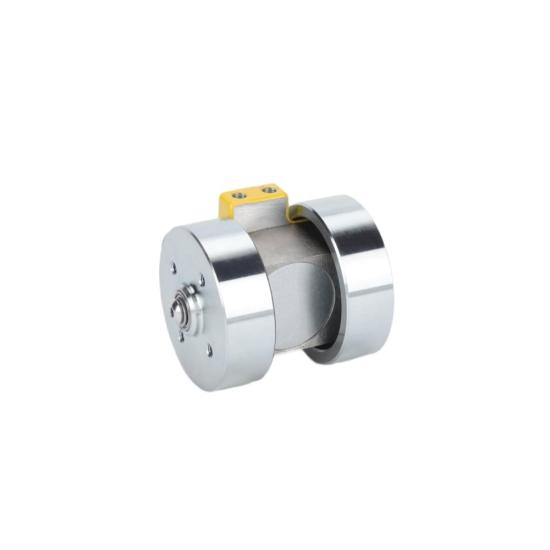

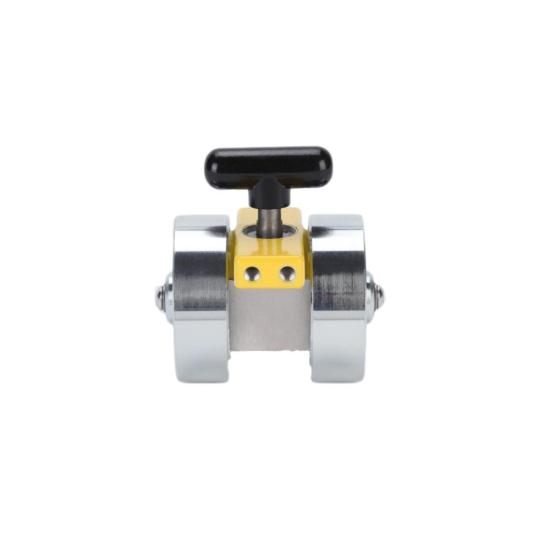

Magswitch Magwheel 95

Now: $223.99 USD

Zoom

Estimated
$0.00 CAD

SKU	Weight	Max Breakaway	Magnetic Pole Footprint	Dimensions	Price
xWeight:xMax Breakaway:xMagnetic Pole Footprint:xDimensions:Clear All

8100401	0.7	38	41mm x 45.87mm	2.2" x 1.6" x 2.2"	$223.99 USD
81004012 Available$223.99 USD/ea

No Matching SKUs.

Details

Powerful connection for drive units on any ferrous surface enabling flat, vertical or inverse travel. Switch on and off 38 pounds of magnetic hold force by rotating the knob. Applications include positioning and guiding, sheet feeding, pipe handling, fitting and fabrication, and numerous OEM automation and fixturing applications.

FEATURES & BENEFITS

Magnet turns completely on and off.
Magnet stays clean.
Does not use an electrical power source.
Holds to flat and round surfaces of steel.
Non-marring hold.
Compact and easy to use.
Can be fitted with drive units for mobile applications.

SPECIFICATIONS

Max Breakaway: 38 lbs / 17.2 kg
Product Weight: 0.7 lbs / 0.3 kg
Dimensions: 2.2 x 1.6 x 2.2 in / 55.8 x 40.6 x 55.8 mm
Magnetic Pole Footprint: 41 mm x 45.87 mm

⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Less

Specifications

Weight	0.7
Max Breakaway	38
Magnetic Pole Footprint	41mm x 45.87mm
Dimensions	2.2" x 1.6" x 2.2"

Less
