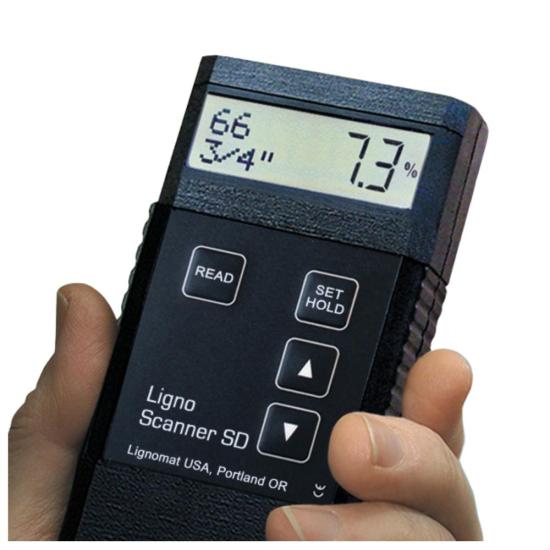

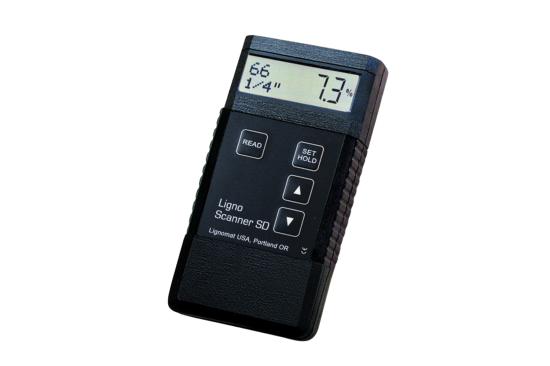

The Ligno-Scanner SD is a dual-depth pinless moisture meter, easy to use and self-calibrating. The dual-depth meter has 2 independent sets of calibrations, one for measuring 1/4″ deep and one for measuring 3/4″ deep. Dual-depth settings are available for all wood species settings and the reference scale, an advantage over standard pinless meters, which have a fixed 3/4″ measuring depth.
This unique dual-depth pinless moisture meter adds versatility, whether you are woodworking, manufacturing furniture, installing floors, or working on a restoration job.
Dual-depth – a new approach to scanning – works well for:

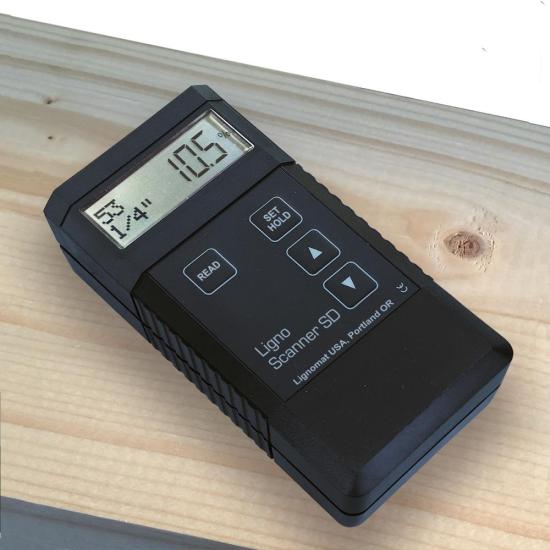

- Different board thicknesses, over 3/4″ and boards thinner than 3/4″

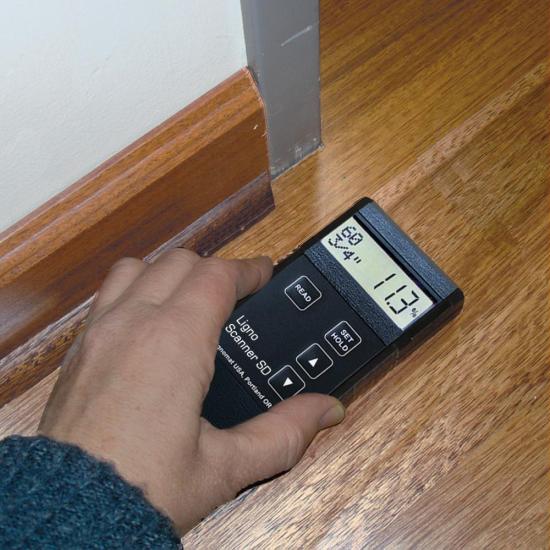

- Floor testing at 1/4″ depth assures only the floor planks are measured and not the concrete or subfloor underneath.
- Engineered panels and floor planks, measuring the top layer and overall product
- Compare surface/core moisture to check if boards are dried evenly.

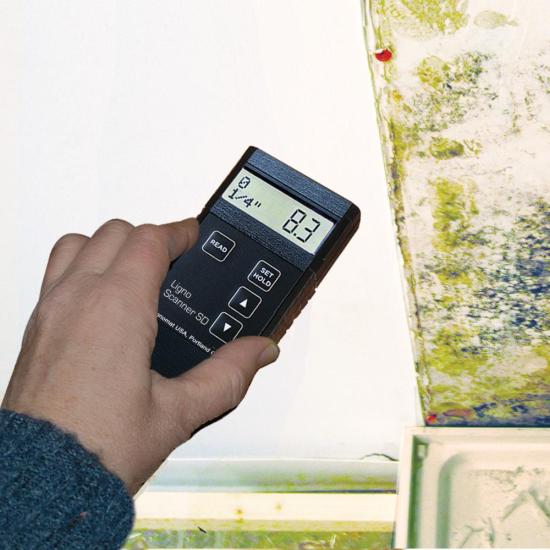

- Check surface moisture after water damage or after applying waterborne finishes.
Features:
Included - Ligno-Scanner SD, pouch with belt-loop, one 9 V battery, manual, and laminated wood species card.
Measuring Range - 5-60%, dependent upon species setting. Lower than 5% for hardwoods, higher than 5% for softwoods
Display - 0.1% resolution for the entire range
Species Corrections - 71 wood species settings, or specific gravity of the wood, between 0.3 and 1.0 (setting 30-100)

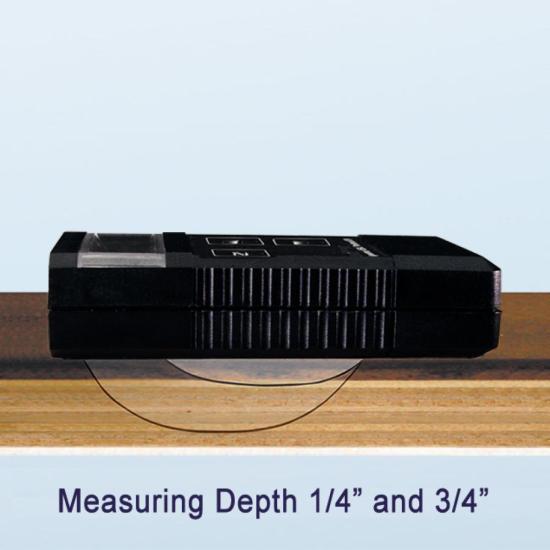

Measuring Depth - Dual depth measuring capabilities at 1/4″ and 3/4″
Reference Scale - 0-99 for non-wood building materials
Calibration - Stable calibration not affected by ambient temperature. Built-in calibration check.
Calibration Check - External calibration check block #TS is available to verify the calibration and functions of the meter.
Size - Pocket-size 2″ x 5.5″ x 0.5″, measuring pad 1-5/8″ x 2-5/8″
Weight - 8 ounces (200 g), made out of high-impact plastic
Warranty - All moisture meters have a 2 year warranty. Battery excluded.
