Famag Rotating Depth Stop for Forstner Bits with a Ø of 10-50mm - 5 Piece Set

Zoom

Estimated
$0.00 CAD

Clear All

No Matching SKUs.

Details

Allowing for precise depth control, these rotating depth stops are designed for use with Famag Forstner bits. Supported by a ball bearing, the stop rotates freely until reaching the desired drilling depth. Once the stop contacts the work surface, it stops spinning, preventing marring and indicating that the desired depth has been reached.

The guide bushings are mounted within the depth stop base using the included locking ring. Bits are secured in place with the bushing’s set screw. For proper fit, the bushing’s inner diameter must match the bit’s shaft diameter. The shank size is not relevant for fitting.

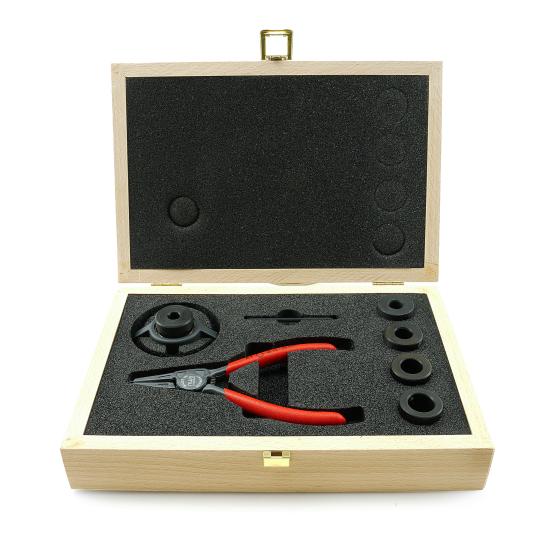

The set comes with the ABS rotating base, supported by a ball bearing, and 5 interchangeable steel bushings, allowing for precise depth control on Forstner bits with a cutting diameter from 10-50mm.

The base has a height of 44mm, which deducts from the total available drilling depth. For increased depth, the bushing and bit can be inverted within the base.

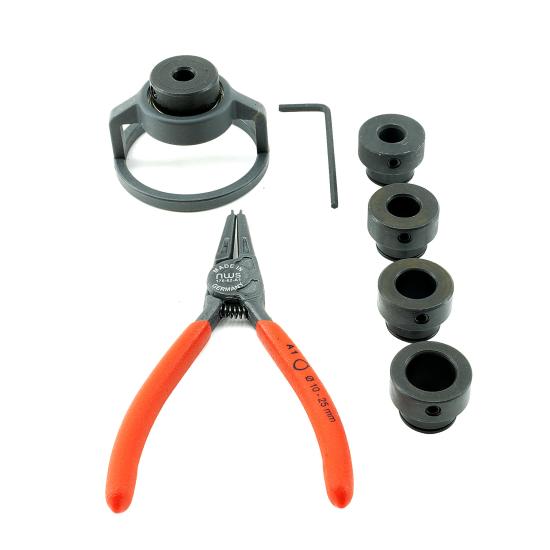

Includes:

x1 Depth Stop Base
x1 Locking Ring Pliers
x1 pre-installed Bushing Locking Ring
x1 Hex Key
x5 Guide Bushings for Famag Forstner bits (1622, 1623, 1624, 1630, 1663, 1664 series) with a cutting diameter from 10-48 mm
- 1621.008 - for bits with a cutting diameter from 10-21 mm (3/8" - 3/4"), and a shaft diameter of 8mm
- 1621.010 - for bits with a cutting diameter from 22-27 mm (7/8" - 1"), and a shaft diameter of 10mm
- 1621.012 - for bits with a cutting diameter from 28-35 mm (1-1/8" - 1-3/8"), and a shaft diameter of 12mm
- 1621.014 - for bits with a cutting diameter from 36-40 mm (1-1/2" - 1-5/8"), and a shaft diameter of 14mm
- 1621.016 - for bits with a cutting diameter from 42-50 mm (1-1/8" - 2"), and a shaft diameter of 16mm
